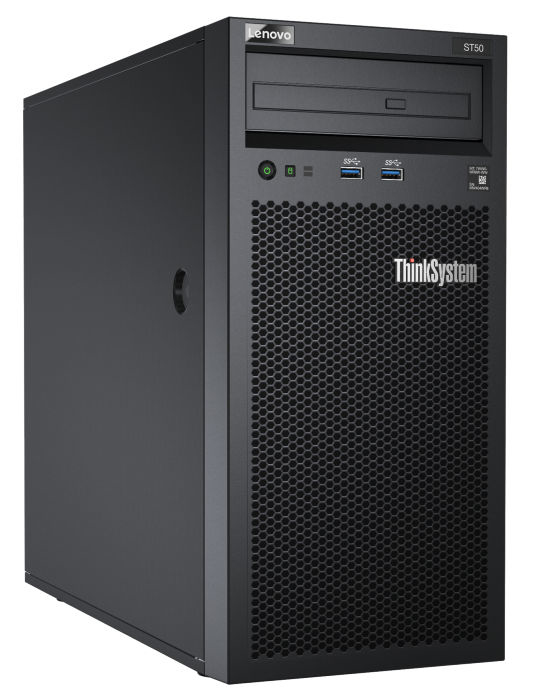

The Lenovo ThinkSystem ST50 1-socket 4U rack-mountable tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is now available with the Intel Xeon E-2200 Series processors, formerly codenamed "Coffee Lake-S Refresh".
This product guide provides essential presales information to understand the ThinkSystem ST50 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 and consider its use in IT solutions.
Products specifications
| Width | 175 mm |
| Depth | 424 mm |
| Height | 376 mm |
| Harmonized System (HS) code | 84714100 |
| Power supply | 250 W |
| Number of redundant power supplies installed | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Chassis type | Tower (4U) |
| Product colour | Black |
| Performance management | XClarity Provisioning Manager Lite |
| Trusted Platform Module (TPM) | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2224G |
| Processor frequency | 3.5 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C246 |
| Number of processors installed | 1 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Embedded options available | No |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| Optical drive type | DVD-RW |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
