The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.

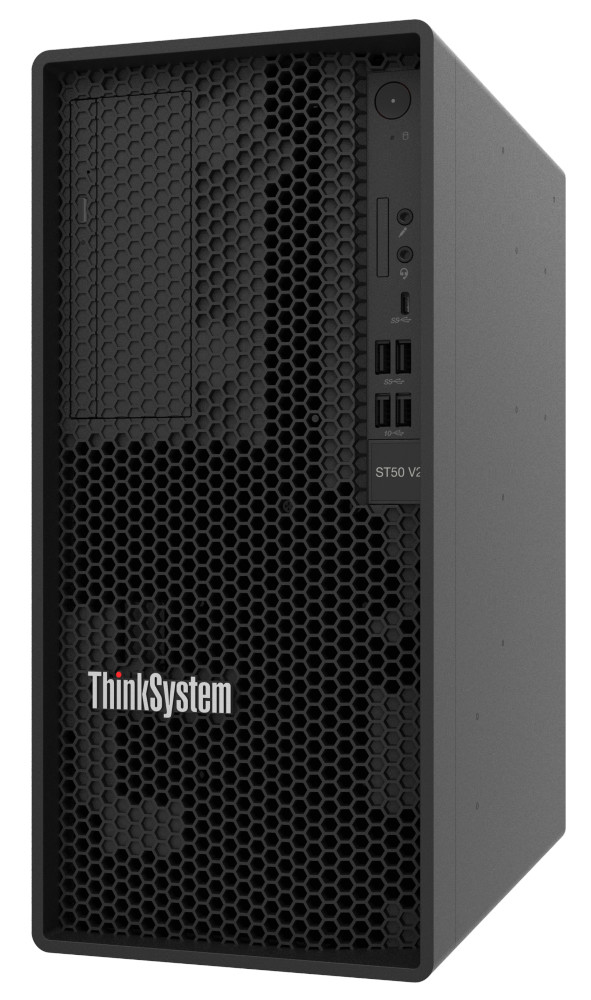

The following figure shows the ThinkSystem ST50 V2.
Products specifications
| Width | 170 mm |
| Depth | 316 mm |
| Height | 376 mm |
| Warranty period | 3 year(s) |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Redundant power supply (RPS) support | No |
| Power supply | 500 W |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Serial ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Wi-Fi | No |
| LAN controller | Intel® I219-LM |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Tower |
| Product colour | Black |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2324G |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 128 GB |
| Maximum storage capacity | 16 TB |
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD size | 3.5" |
| Supported SSD sizes | 2.5", 3.5" |
| Number of SSDs supported | 2 |
| RAID support | Yes |
| Hot-swap | No |
| Optical drive type | No |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P750 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
| CPU configuration (max) | 1 |
