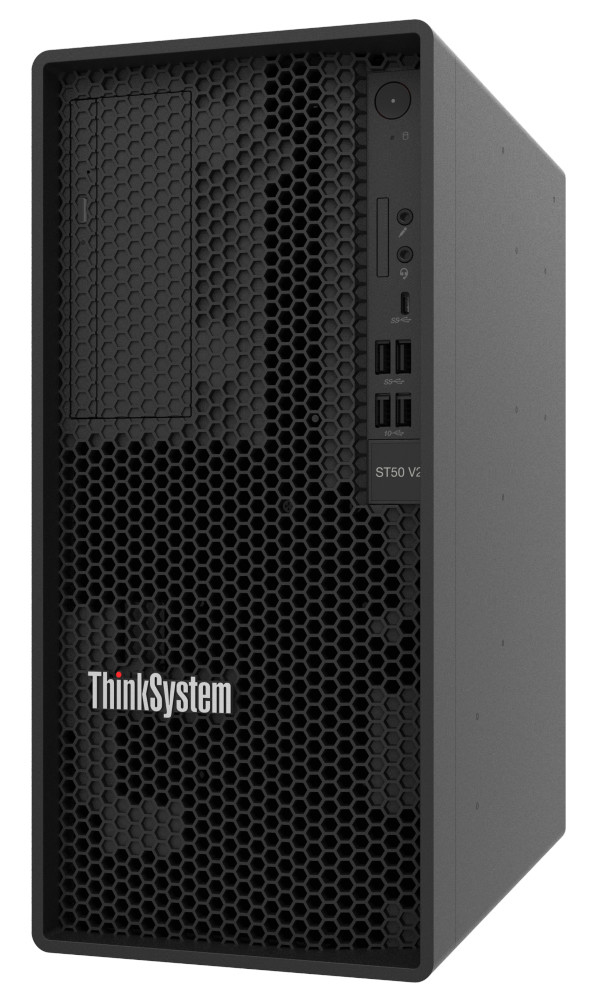

The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
Products specifications
| Width | 170 mm |
| Depth | 316 mm |
| Height | 376 mm |
| Weight | 9.4 kg |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Power supply | 500 W |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| DisplayPorts quantity | 2 |
| LAN controller | Intel® I219-LM |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Tower |
| Product colour | Black |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2324G |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 16 GB |
| Total storage capacity | 4 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 2 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P750 |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
