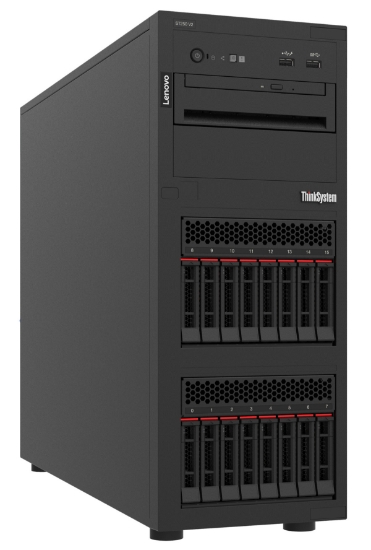

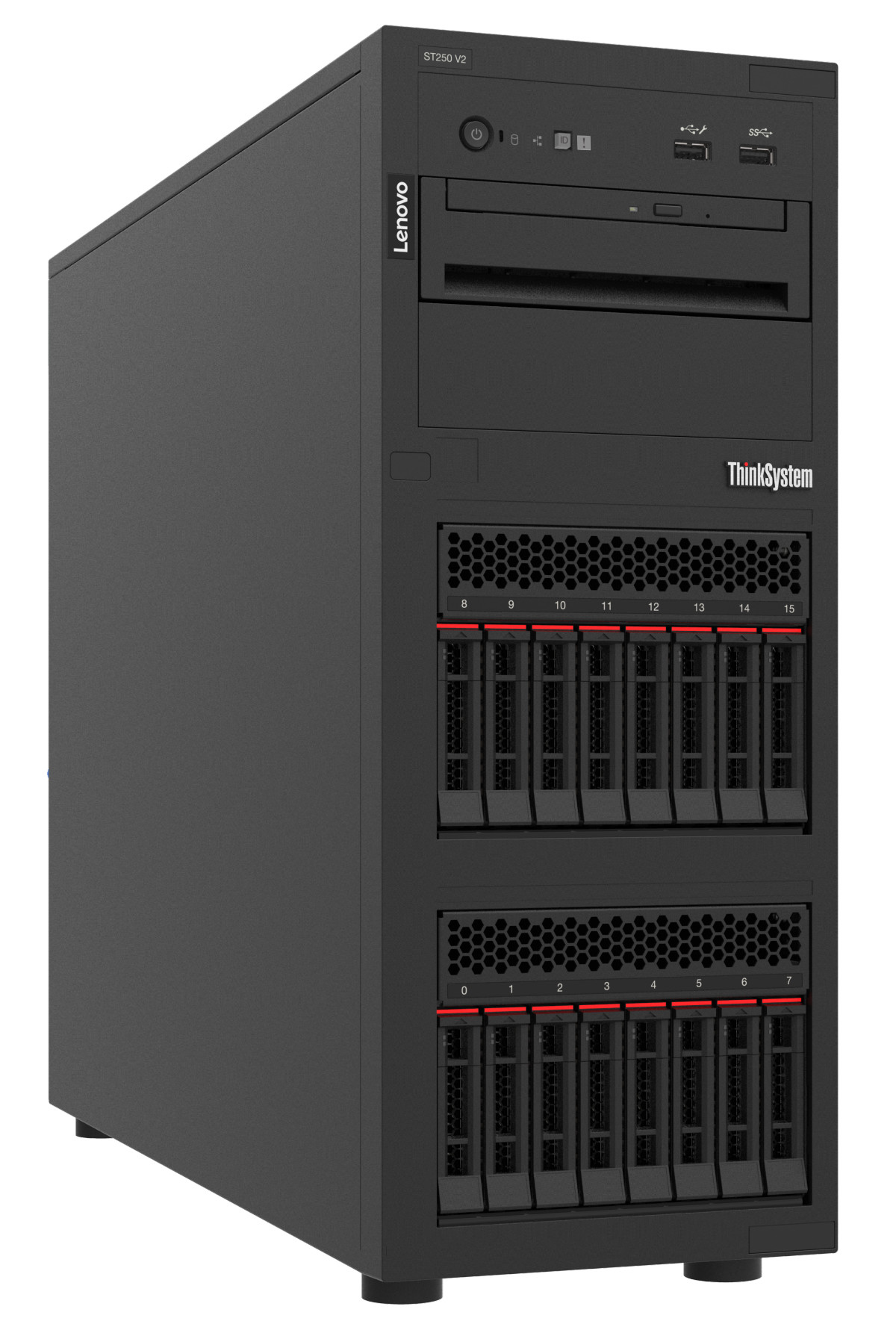

The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST250 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V2 and consider its use in IT solutions.
Products specifications
| Width | 176 mm |
| Depth | 578 mm |
| Height | 444 mm |
| Weight | 23.6 kg |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Power supply | 750 W |
| Number of main power supplies | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN | Yes |
| Chassis type | Tower |
| Product colour | Black |
| Remote administration | XCC Enterprise |
| Noise level | 27.6 dB |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2356G |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 5 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 128 GB |
| Total storage capacity | 0 GB |
| RAID support | Yes |
| Supported RAID controllers | 5350-8i |
| Optical drive type | No |
| Internal drive bays | 8 |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics P750 |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| CPU configuration (max) | 1 |
