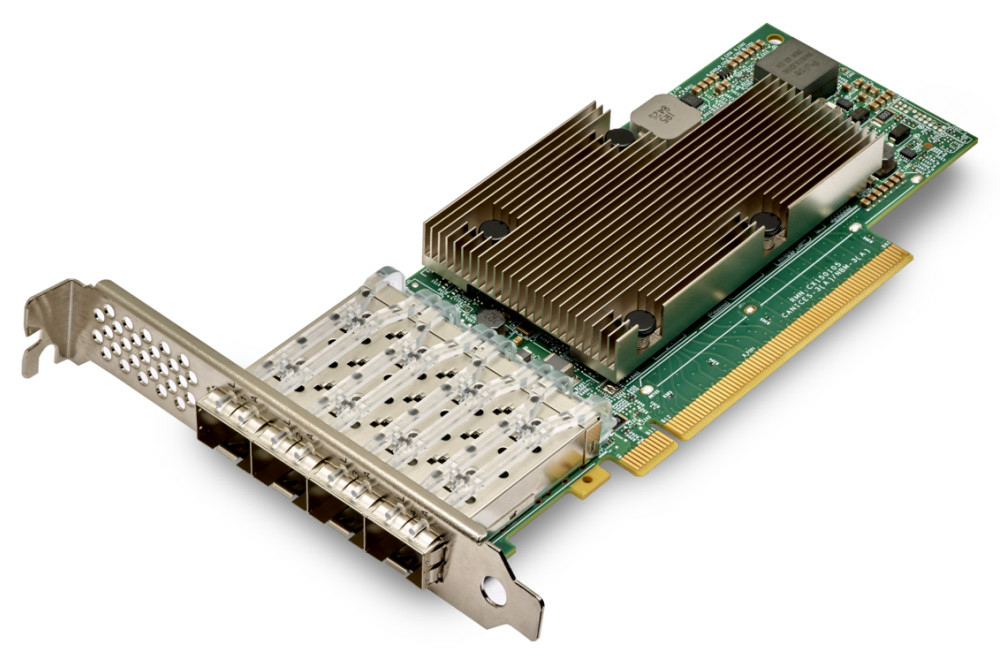

The ThinkSystem Broadcom 57504 10/25GbE SFP28 4-port adapters are high-performance low-power 25 Gb Ethernet adapters with a PCIe 4.0 host interface that offers TruFlow intelligent flow processing and supports advanced networking technologies such as VXLAN, NVGRE, Geneve, RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
Products specifications
| Width | 167 mm |
| Height | 63 mm |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| PCI version | 4.0 |
| Maximum data transfer rate | 25000 Mbit/s |
| Networking standards | IEEE 1588 |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Component for | Server |
| Internal | Yes |
| Certification | EN 55022:2010 + AC:2011 Class B (CE EU) EN 55024 Class B (EU) CFR47, Part 15 Class B (USA FCC) ICES-003 Class B (Canada) CNS13438 Class B (BSMI Taiwan) RRL KN22 Class B (S. Korea) KN24 (ESD) (S. Korea) V-3 / 2014 / 04 (VCCI Japan) EN 60950-1 UL 60950-1 CTUVus UL CSA 22.2 No. 950 CNS14336 Class B ICES 003 UL 1977 (connector safety) UL 796 (PCB wiring safety) UL 94 (flammability of parts) |
