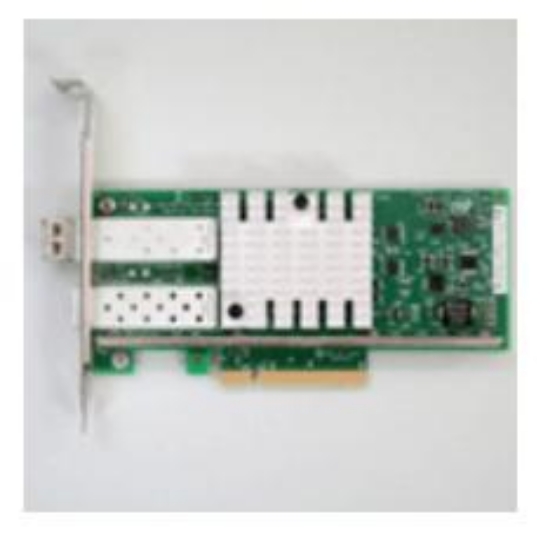

The Intel Ethernet X520 Converged Network Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.- PCIe 2.0 x8, 5.0GT/s - supports SFP+ Direct Attached Twin Axial cable up to 10m - Low profile and full height bracket - VMDq, VMDc, PCI-SIG, SR-IOV capable - On-chip QoS and traffic management - Flexible port partitioning - Intelligent offloads - Support iSCSI, FCoE, NFS protocols.
Products specifications
| Width | 68.1 mm |
| Depth | 17.8 mm |
| Height | 167.4 mm |
| Weight | 270 g |
| Harmonized System (HS) code | 85176990 |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Internal | Yes |
| Compatible products | X520-DA2 |
