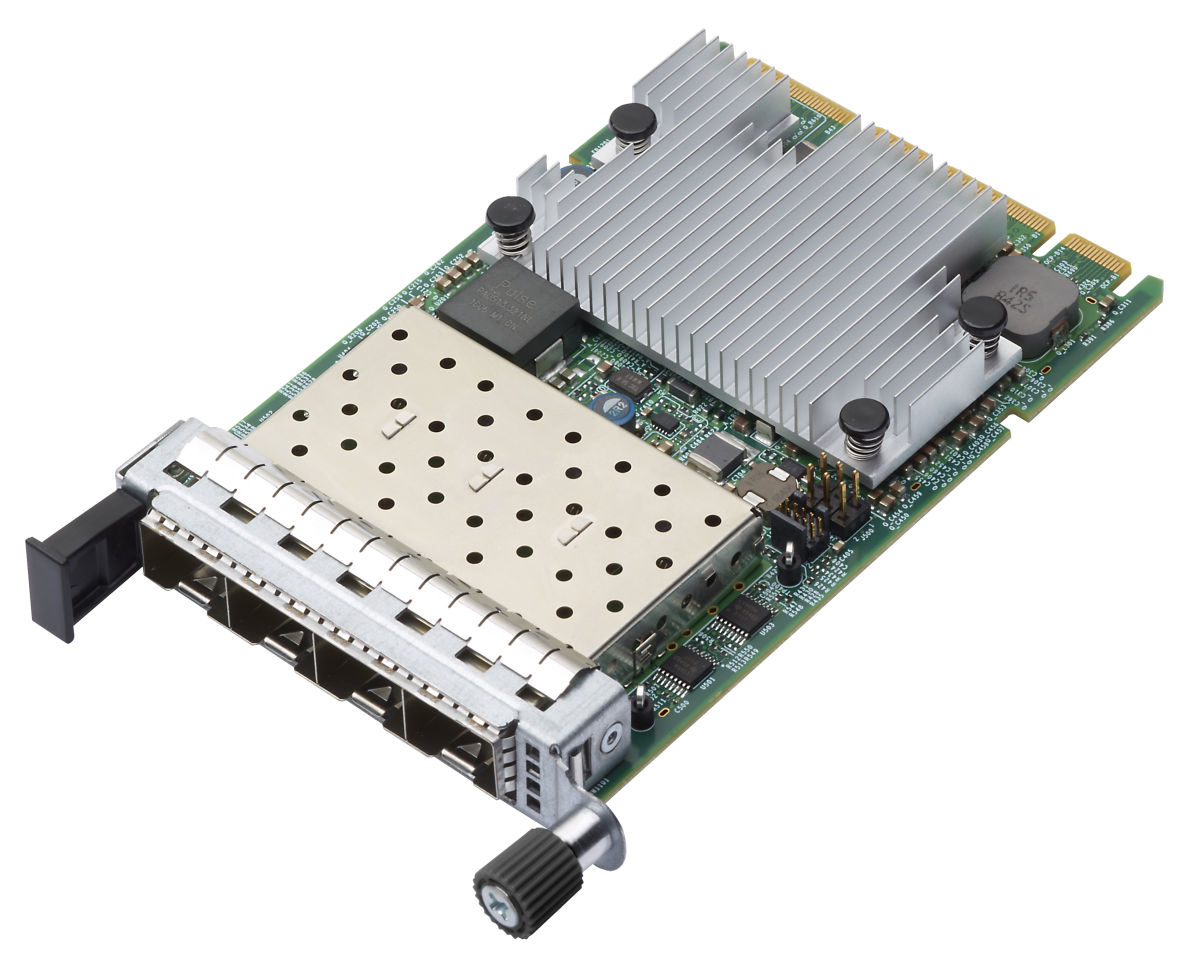

The ThinkSystem Broadcom 57454 10/25GbE SFP28 Ethernet Adapters are high-performance 25 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor.
This product guide provides essential presales information to understand the adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Broadcom 25 GbE network adapters and consider their use in IT solutions.
Products specifications
| Width | 167 mm |
| Height | 63 mm |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP28 |
| Maximum data transfer rate | 25000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Component for | Server |
| Product colour | Black, Green, Stainless steel |
| Internal | Yes |
| Certification | EN 55022:2010 + AC:2011 Class B (CE EU) EN 55024 Class B (EU) CFR47, Part 15 Class B (USA FCC) ICES-003 Class B (Canada) CNS13438 Class B (BSMI Taiwan) RRL KN22 Class B (S. Korea) KN24 (ESD) (S. Korea) V-3 / 2014 / 04 (VCCI Japan) EN 60950-1 UL 60950-1 CTUVus UL CSA 22.2 No. 950 CNS14336 Class B ICES 003 UL 1977 (connector safety) UL 796 (PCB wiring safety) UL 94 (flammability of parts) |
