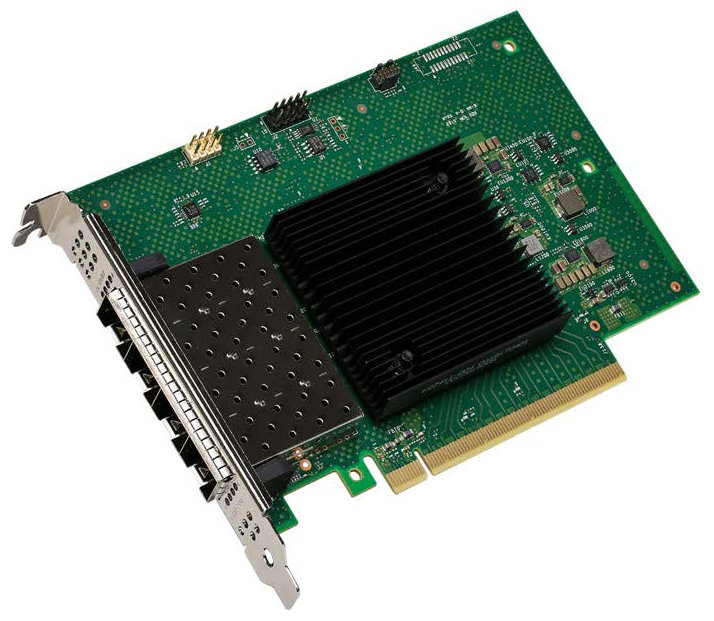

The ThinkSystem Intel E810-DA2 and E810-DA4 10/25GbE SFP28 network adapters improve application efficiency and network performance with innovative and versatile capabilities. With two or four 25GbE SFP28 ports and key performance optimizations, the E810 adapters supports solutions across Cloud, Enterprise, and Communications.
This product guide provides essential presales information to understand the Intel E810 adapters and their key features, specifications and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the E810 adapters and consider their use in IT solutions.
Products specifications
| Width | 76 mm |
| Depth | 115 mm |
| Height | 115 mm |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| PCI version | 4.0 |
| PCI Card form factor | Full-height |
| Maximum data transfer rate | 25000 Mbit/s |
| Component for | Server |
| Product colour | Multicolour |
| Internal | Yes |
| Certification | FCC B UL CE VCCI BSMI RCM KCC |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
