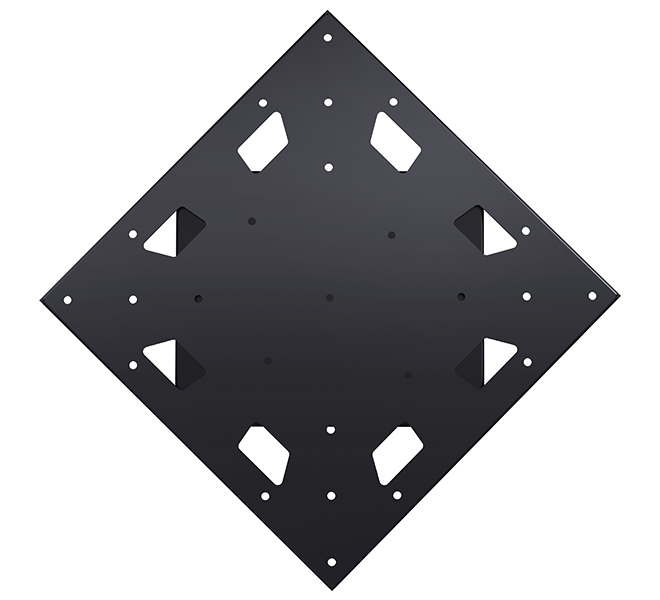

The BT7550 Rotational Flip Mount allows a mounted screen to be easily rotated from landscape to portrait orientation. The tool-less rotation adjustment allows the users to freely rotate the screen from 0° to 90° while mounted or locked at a preferred angle using the built in angle guide before mounting. Additional features include optional negative tilt of 4.5°, ideal for touchscreen displays such as the Samsung Flip®. The BT7550 can be mounted directly to the wall or attached to other B-Tech products such as wall mounts, accessory collars (for pole mounting) and System X rails.
Products specifications
| Product type | Rotational flip mount |
| Product colour | Black |
| Maximum weight capacity | 70 kg |
| Panel mounting interface | 200 x 200,400 x 400 mm |
| Maximum screen size | 165.1 cm (65") |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Cable management | Yes |
| Angle of rotation | 90° |
| Width | 448.2 mm |
| Depth | 75.5 mm |
| Height | 448.2 mm |
| Harmonized System (HS) code | 83024200 |
| Quantity per pack | 1 pc(s) |
