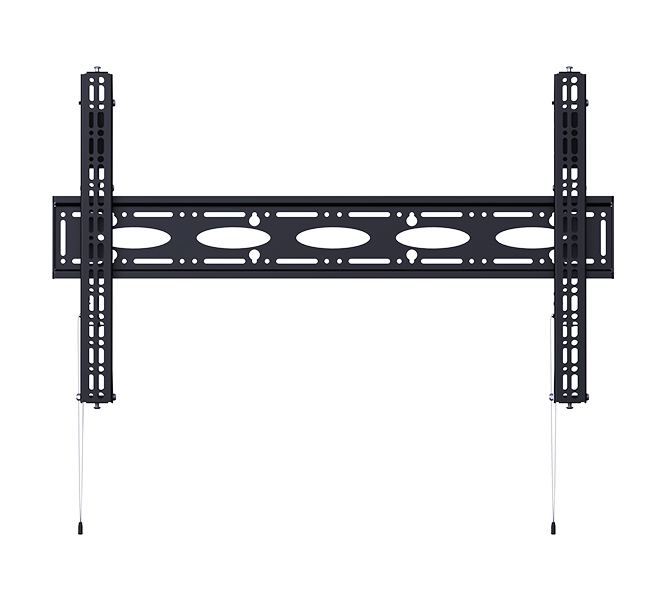

BT9910
Designed to mount the largest screens on the market, the heavy duty BT9910 is capable of supporting weights of 130kg when wall mounted. Ideal for screens over 65" the mount features a choice of 4 tilt positions from 0° up to 15° with the universal interface accommodating screens with mounting patterns up to 1000 x 600mm. With keyhole fixings on the wall plate and a hook-on mounting system, the BT9910 is designed for an easy installation and features height adjustment screws which allow the screen to be levelled once mounted.
Products specifications
| Harmonized System (HS) code | 83024200 |
| Package weight | 12.5 kg |
| Product colour | Black |
| Housing material | Steel |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 15° |
| Distance to the wall (max) | 8.2 cm |
| Maximum weight capacity | 130 kg |
| Minimum screen size | 165.1 cm (65") |
| Number of displays supported | 1 |
| Maximum screen size | 2.54 m (100") |
| Minimum VESA mount | 200 x 1000 mm |
| Maximum VESA mount | 1000 x 600 mm |
| Mounting type | Wall |
