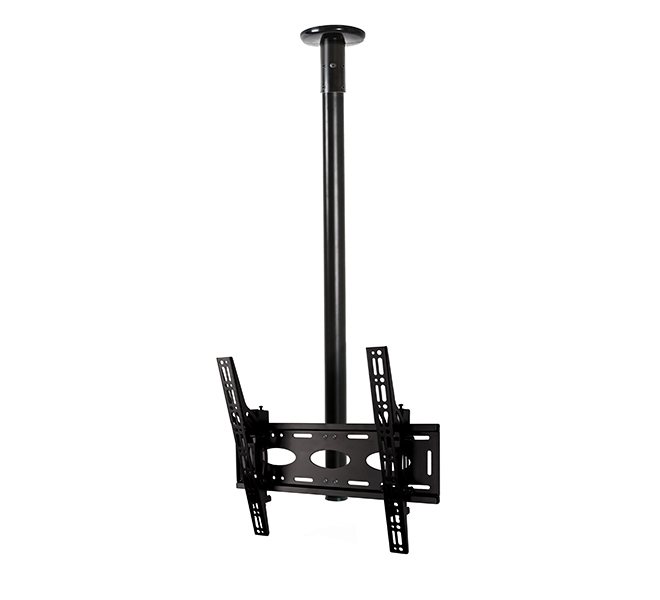

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Products specifications
| Width | 620 mm |
| Depth | 150 mm |
| Height | 1503 mm |
| Harmonized System (HS) code | 83024200 |
| Master (outer) case gross weight | 7.48 kg |
| Master (outer) case 2 weight | 3.09 kg |
| Master (outer) case 2 volume | 0.041 cm³ |
| Master (outer) case 3 volume | 0.005 cm³ |
| Products per master (outer) case | 1 pc(s) |
| Quantity per master (outer) case 2 | 1 pc(s) |
| Product colour | Black |
| Tilt angle range | -15 - 15° |
| Cable management | Yes |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 99.1 cm (39") |
| Number of displays supported | 1 |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Ceiling |
| Minimum VESA mount | 400 x 400 mm |
| Maximum VESA mount | 600 x 400 mm |
