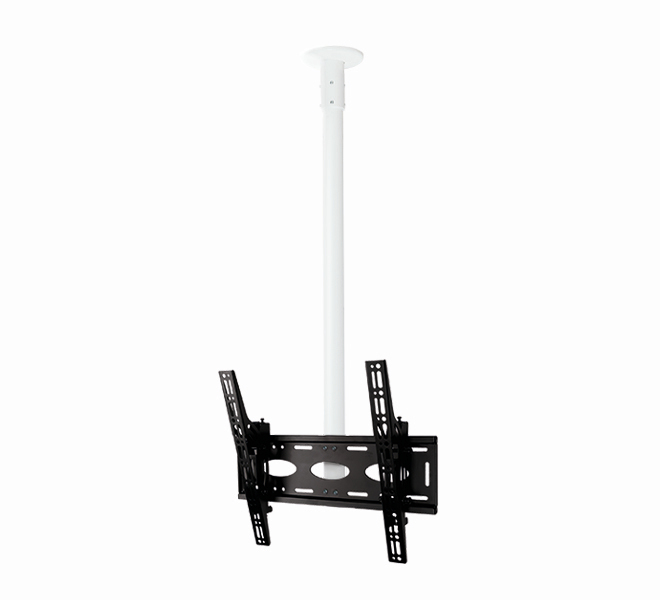

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Products specifications
| Harmonized System (HS) code | 83024200 |
| Product colour | Black, White |
| Orientation | Landscape/Portrait |
| Easy to install | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 15 - -15° |
| Cable management | Yes |
| Ceiling mounting tube length (max) | 150 cm |
| Maximum weight capacity | 50 kg |
| Number of displays supported | 1 |
| Maximum screen size | 165.1 cm (65") |
| Mounting | Screws |
| Mounting type | Ceiling |
| Minimum VESA mount | 468 x 400 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 600 x 400 mm |
