Sorry - this product is no longer available

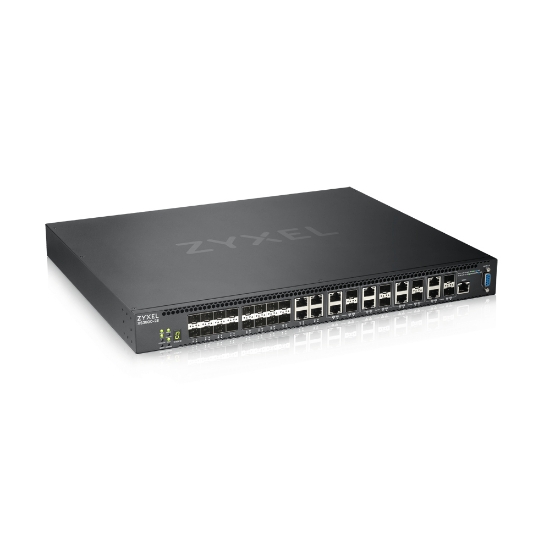

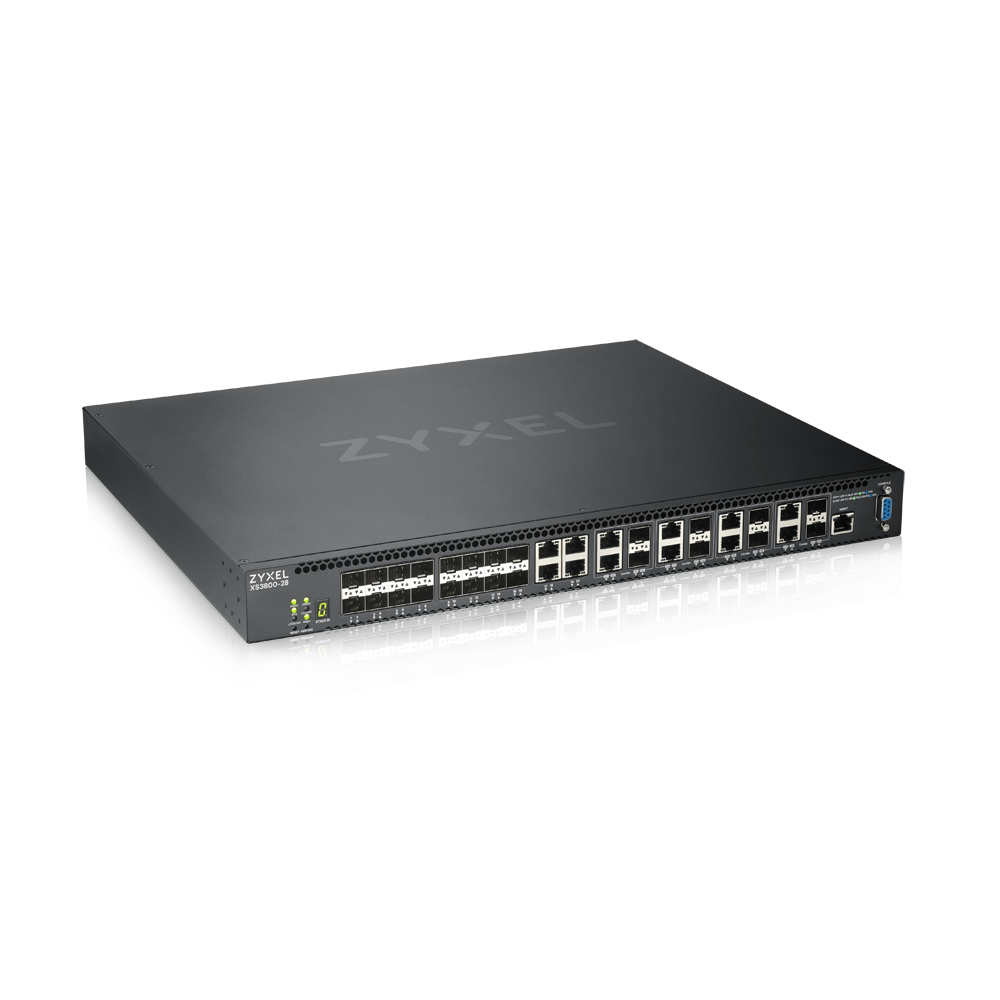

Zyxel XS3800-28 Managed L2+ 10G Ethernet (100/1000/10000) Black

Be the first to review this product
Zyxel XS3800-28. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 32000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE.... Power connector: AC-in jack. Rack mounting
Manufacturer: Zyxel
SKU: XS3800-28-ZZ0101F
Vendor: Aspects
Flexible port design
XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks.

Essentials of a core switch
XS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.

Restore Button
The "Restore" button saves the last workable configuration as the custom default, which allows you to fall back instantly in case of network misconfigurations.

Dual Power
Two PSUs support active-standby power redundancy that triggers backup power supply if the main unit fails.

Designed for the long haul
Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS3800-28 for your networks.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€3270.42 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Flexible port design
XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks.

Essentials of a core switch
XS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.

Restore Button
The "Restore" button saves the last workable configuration as the custom default, which allows you to fall back instantly in case of network misconfigurations.

Dual Power
Two PSUs support active-standby power redundancy that triggers backup power supply if the main unit fails.

Designed for the long haul
Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS3800-28 for your networks.
Products specifications
Weight & dimensions
Width441 mm
Depth340 mm
Height44 mm
Weight4.81 kg
Logistics data
Harmonized System (HS) code85176990
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%
Power
Power supply includedYes
Redundant power supply (RPS) supportYes
Number of power supply units2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Management features
Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
Traffic shapingYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Combo SFP ports quantity8
SFP+ module slots quantity16
Fiber optic connectorSFP+
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology10GBASE-T, 100BASE-T, 1000BASE-T
Port mirroringYes
IP routingYes
Policy-based routingYes
Flow control supportYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Auto-negotiationYes
VLAN supportYes
Data transmission
Switching capacity560 Gbit/s
Forwarding rate416 Mpps
MAC address table32000 entries
Packet buffer memory4 MB
Design
Rack mountingYes
Product colourBlack
Reset buttonYes
Performance
Internal memory8000 MB
Flash memory64 MB
Mean time between failures (MTBF)656274.78 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Packaging content
Cables includedAC
Rack mount kitYes
Security
DHCP featuresDHCP client, DHCP relay, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
IGMP proxyYes
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication
Password protectionYes
Multicast features
Multicast supportYes
Optical fiber
Fiber ethernet cabling technology1000BASE-X
*
*
*
