Sorry - this product is no longer available

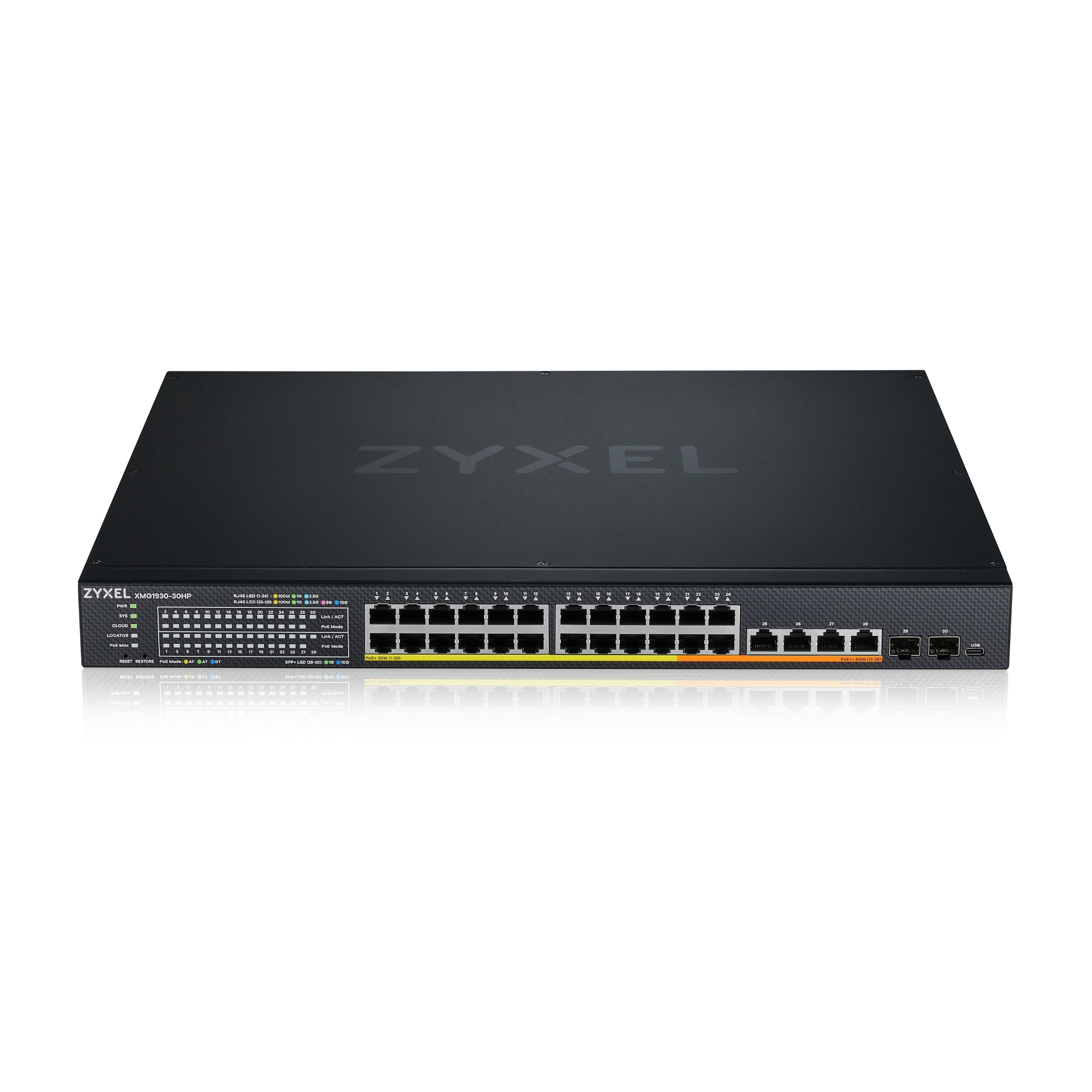

Zyxel XMG1930-30HP Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

Zyxel XMG1930-30HP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 2. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Manufacturer: Zyxel
SKU: XMG1930-30HP-ZZ0101F
Vendor: Aspects
The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options.
On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€1294.33 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options.
On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
Products specifications
Weight & dimensions
Width441 mm
Depth330 mm
Height44 mm
Weight4.85 kg
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Heat dissipation864.1 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)864.1 W
Management features
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Configuring Location Settings (CLI)Yes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
10G Ethernet (copper) ports quantity4
Installed SFP+ modules quantity2
Fiber optic connectorSFP+
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G supportYes
Policy-based routingYes
Flow control supportYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
VLAN supportYes
Number of VLANs4000
Data transmission
Switching capacity240 Gbit/s
Forwarding rate178.5 Mpps
MAC address table16000 entries
Static routeYes
Jumbo frames supportYes
Jumbo frames12000
Design
Rack mountingYes
Form factor1U
Product colourBlack
Reset buttonYes
LED indicatorsYes
Performance
Mean time between failures (MTBF)587922.31 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity28
Power over Ethernet plus (PoE+) ports quantity20
Total Power over Ethernet (PoE) budget700 W
Packaging content
Cables includedAC
Rack mount kitYes
Security
DHCP featuresDHCP client, DHCPv6 relay
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
Protocols
GARP VLAN Registration Protocol (GVRP)Yes
Multicast features
Multicast supportYes
*
*
*
Products specifications
Weight & dimensions
Width441 mm
Depth330 mm
Height44 mm
Weight4.85 kg
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Heat dissipation864.1 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)864.1 W
Management features
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Configuring Location Settings (CLI)Yes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
10G Ethernet (copper) ports quantity4
Installed SFP+ modules quantity2
Fiber optic connectorSFP+
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G supportYes
Policy-based routingYes
Flow control supportYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
VLAN supportYes
Number of VLANs4000
Data transmission
Switching capacity240 Gbit/s
Forwarding rate178.5 Mpps
MAC address table16000 entries
Static routeYes
Jumbo frames supportYes
Jumbo frames12000
Design
Rack mountingYes
Form factor1U
Product colourBlack
Reset buttonYes
LED indicatorsYes
Performance
Mean time between failures (MTBF)587922.31 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity28
Power over Ethernet plus (PoE+) ports quantity20
Total Power over Ethernet (PoE) budget700 W
Packaging content
Cables includedAC
Rack mount kitYes
Security
DHCP featuresDHCP client, DHCPv6 relay
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
Protocols
GARP VLAN Registration Protocol (GVRP)Yes
Multicast features
Multicast supportYes
