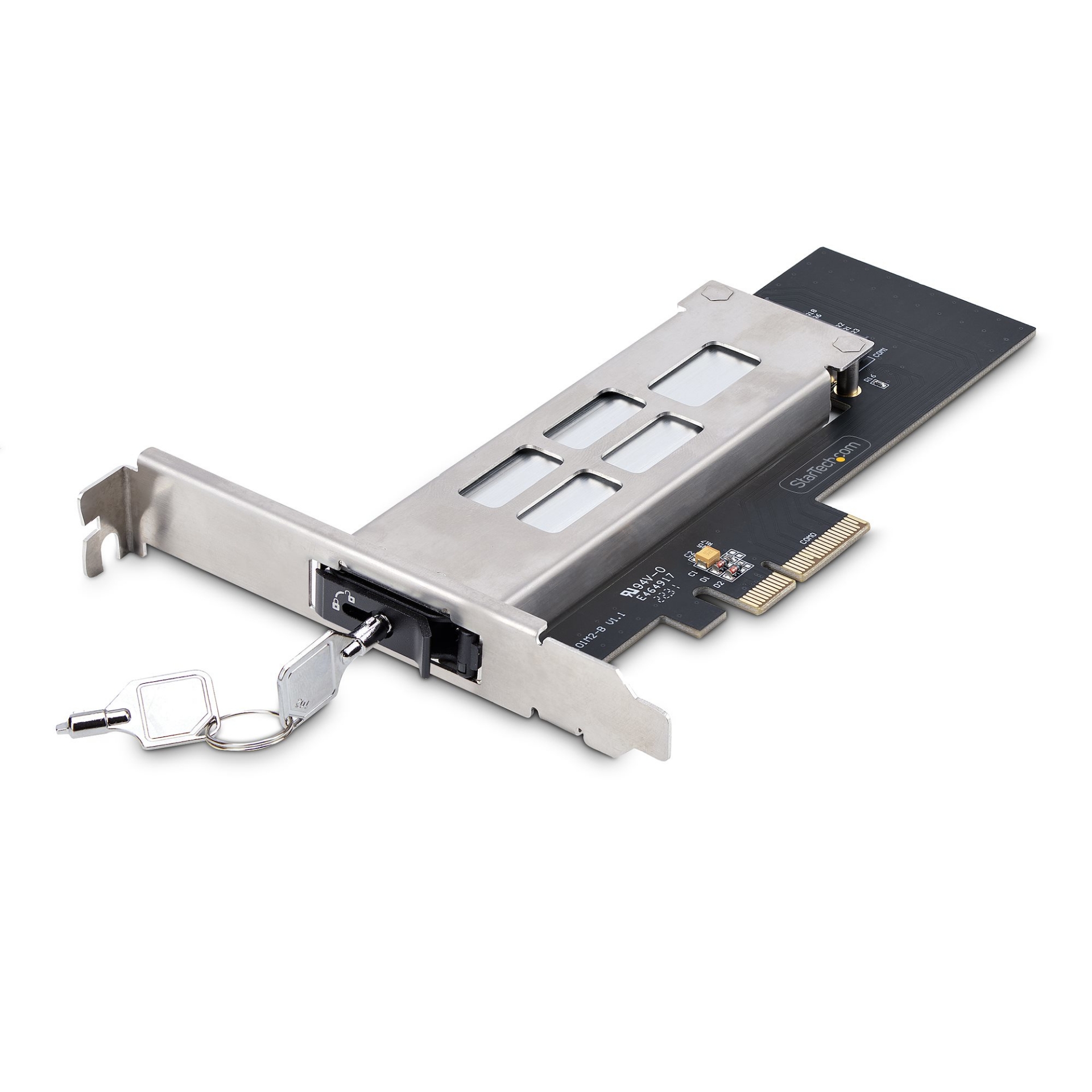

Picture of StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included

StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included

Name: StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included
SKU: M2-REMOVABLE-PCIE-N1
Price: 96.34 EUR
Availability: InStock

Be the first to review this product

StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Black, Silver, Purpose: PC, Mean time between failures (MTBF): 10000 h. Data transfer rate (max): 64 Gbit/s. Width: 120 mm, Depth: 167 mm, Height: 19 mm. Package width: 151 mm, Package depth: 230 mm, Package height: 46 mm

Manufacturer: StarTech

SKU: M2-REMOVABLE-PCIE-N1

Vendor: Aspects

Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included)

Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.

Toolless Installation

Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.

Optimal Performance

The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems.

Hot-Swappable

Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature.

The StarTech.com Advantage

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€96.34 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Features
Data transfer rate (max)	64 Gbit/s
S.M.A.R.T. support	Yes
TRIM support	Yes
Plug and Play	Yes
Weight & dimensions
Width	120 mm
Depth	167 mm
Height	19 mm
Weight	65 g
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	325 mm
Master (outer) case length	485 mm
Master (outer) case height	270 mm
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	151 mm
Package depth	230 mm
Package height	46 mm
Package weight	215 g
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
Ports & interfaces
Host interface	PCIe
Output interface	M.2
Expansion card standard	PCIe 4.0
Design
Internal	Yes
Product colour	Black, Silver
Purpose	PC
Number of fans	0 fan(s)
LED indicators	Yes
Mean time between failures (MTBF)	10000 h
Hot-swap	Yes
