PrevStarTech.com 1U 4-Post Adju...
NextStarTech.com 1U Adjustable ...

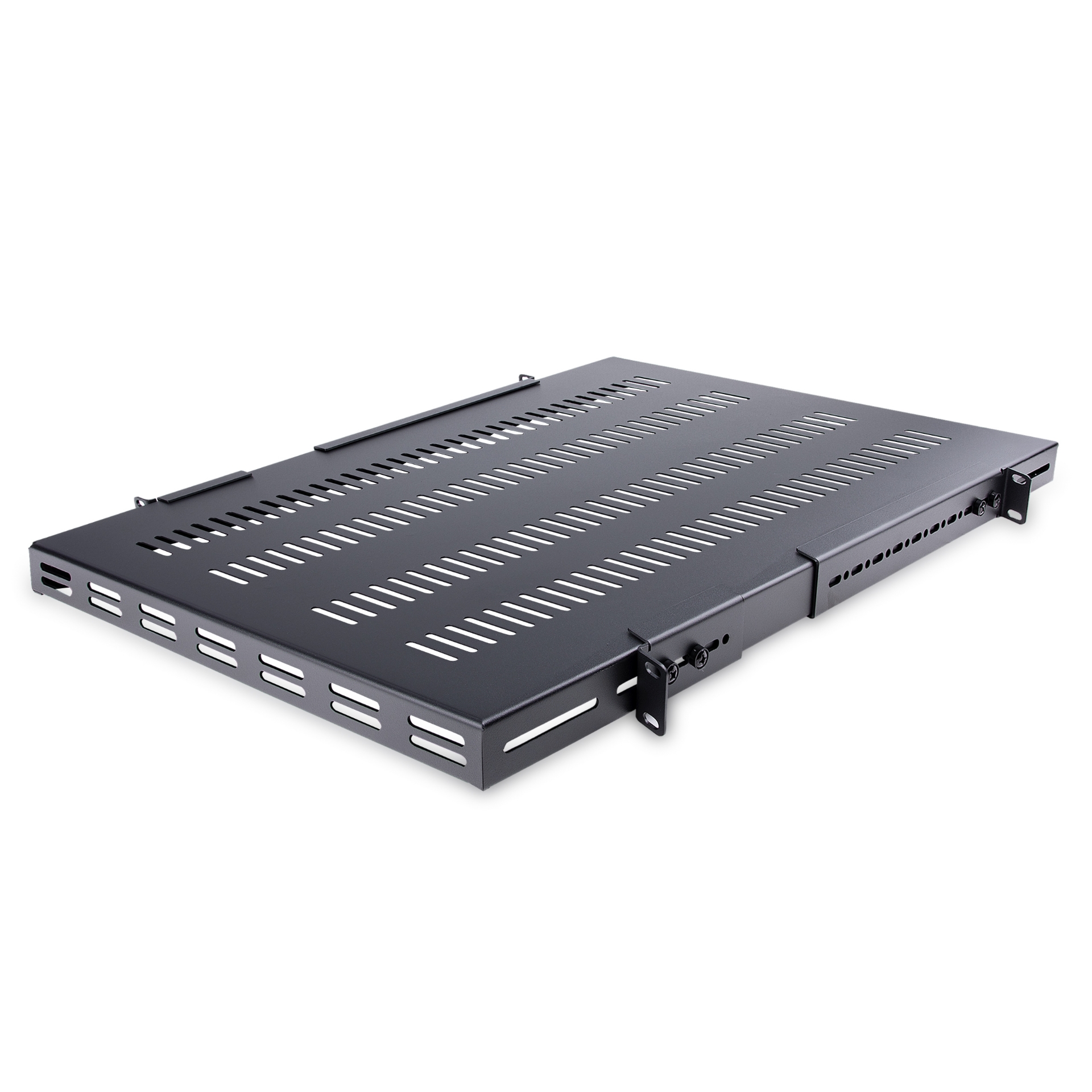

StarTech.com 1U 4-Post Adjustable Vented Server Rack Mount Shelf - 330lbs(150 kg) - 19.5 to 38in Adjustable Mounting Depth Universal Tray for 19" AV/ Network Equipment Rack - 27.5in Deep

Be the first to review this product
StarTech.com 1U 4-Post Adjustable Vented Server Rack Mount Shelf - 330lbs(150 kg) - 19.5 to 38in Adjustable Mounting Depth Universal Tray for 19" AV/ Network Equipment Rack - 27.5in Deep. Type: Adjustable shelf, Housing material: Steel, Product colour: Black. Weight: 5.7 kg
Manufacturer: StarTech
SKU: ADJSHELFHDV
Vendor: Aspects
Add an adjustable depth vented shelf into almost any 4-Post server rack or cabinet

The ADJSHELFHDV 1U 4-Post Adjustable Heavy Duty Vented Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 19-inch 4-post server rack or cabinet.

This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack, while the vented design improves air flow and help to lower temperatures in the rack. Constructed using 1.2mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.

The ADJSHELFHDV is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€100.61 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Add an adjustable depth vented shelf into almost any 4-Post server rack or cabinet

The ADJSHELFHDV 1U 4-Post Adjustable Heavy Duty Vented Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 19-inch 4-post server rack or cabinet.

This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack, while the vented design improves air flow and help to lower temperatures in the rack. Constructed using 1.2mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.

The ADJSHELFHDV is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage
Products specifications
Features
TypeAdjustable shelf
Product colourBlack
Housing materialSteel
Maximum weight capacity150 kg
Rack capacity1U
Country of originChina
Weight & dimensions
Width483 mm
Depth700 mm
Height44 mm
Material thickness1.2 mm
Mounting depth (min)49.5 cm
Mounting depth (max)97.4 cm
Weight5.7 kg
Logistics data
Master (outer) case width780 mm
Master (outer) case length560 mm
Master (outer) case height540 mm
Products per master (outer) case5 pc(s)
Harmonized System (HS) code85389099
Packaging data
Package width528 mm
Package depth770 mm
Package height84 mm
Package weight6.8 kg
Technical details
Sustainability complianceYes
Compliance certificatesRoHS, CE
Packaging content
Mounting kitYes
Screws includedYes
Number of screws16
Cage nuts includedYes
Number of cage nuts8
Washers includedYes
Number of washers included8
*
*
*
Products specifications
Features
TypeAdjustable shelf
Product colourBlack
Housing materialSteel
Maximum weight capacity150 kg
Rack capacity1U
Country of originChina
Weight & dimensions
Width483 mm
Depth700 mm
Height44 mm
Material thickness1.2 mm
Mounting depth (min)49.5 cm
Mounting depth (max)97.4 cm
Weight5.7 kg
Logistics data
Master (outer) case width780 mm
Master (outer) case length560 mm
Master (outer) case height540 mm
Products per master (outer) case5 pc(s)
Harmonized System (HS) code85389099
Packaging data
Package width528 mm
Package depth770 mm
Package height84 mm
Package weight6.8 kg
Technical details
Sustainability complianceYes
Compliance certificatesRoHS, CE
Packaging content
Mounting kitYes
Screws includedYes
Number of screws16
Cage nuts includedYes
Number of cage nuts8
Washers includedYes
Number of washers included8
