Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps

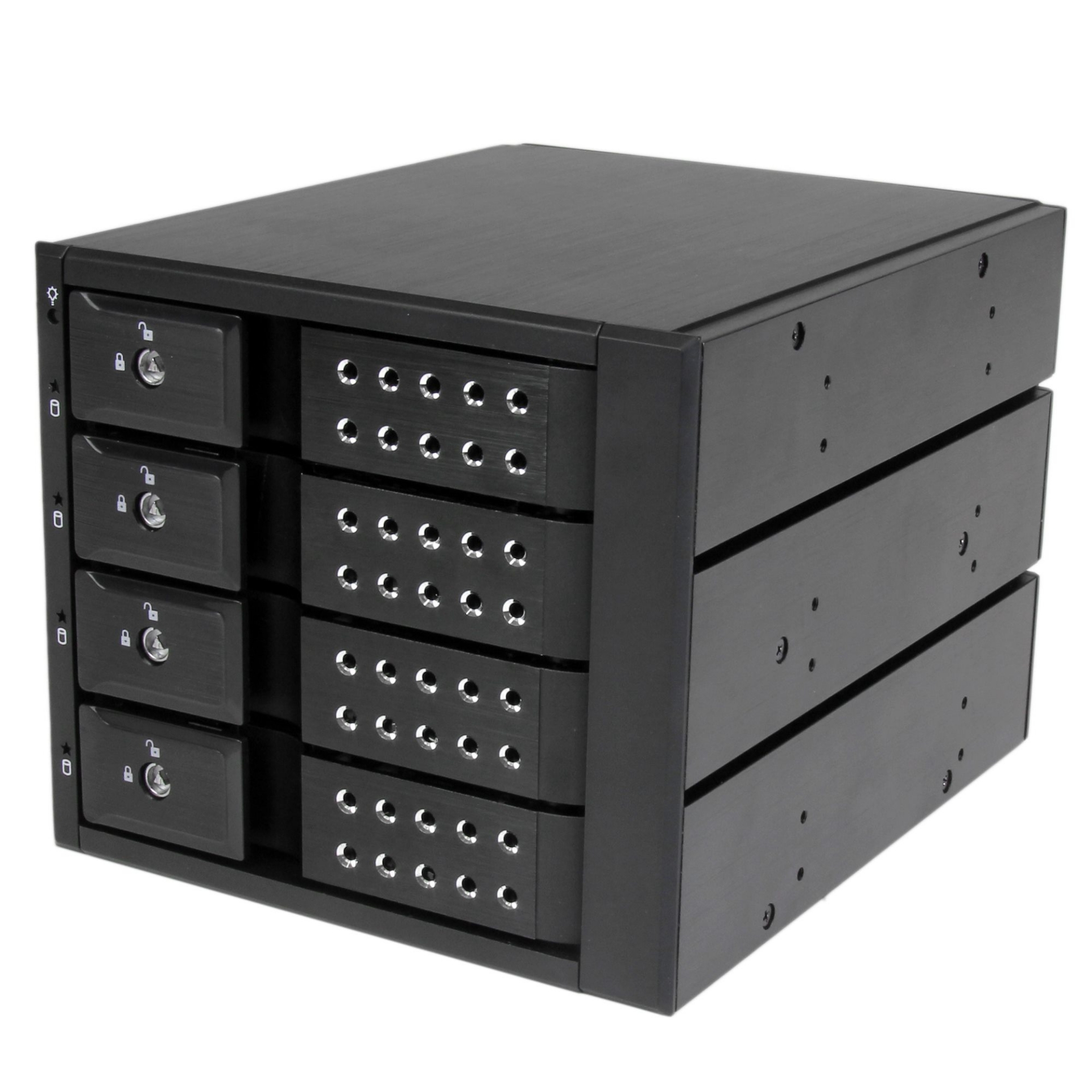

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Products specifications
| Product colour | Black |
| Material | Aluminium |
| Hot-swap | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Key lock | Yes |
| Certification | CE, FCC |
| Width | 145 mm |
| Depth | 197 mm |
| Height | 124 mm |
| Weight | 1.3 kg |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 516 mm |
| Master (outer) case height | 281 mm |
| Harmonized System (HS) code | 84733080 |
| Package width | 254 mm |
| Package depth | 164 mm |
| Package height | 180 mm |
| Package weight | 1.59 kg |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Compliance certificates | RoHS |
| External SATA ports quantity | 4 |
| Cables included | SATA |
| Screws included | Yes |
| Manual | Yes |
