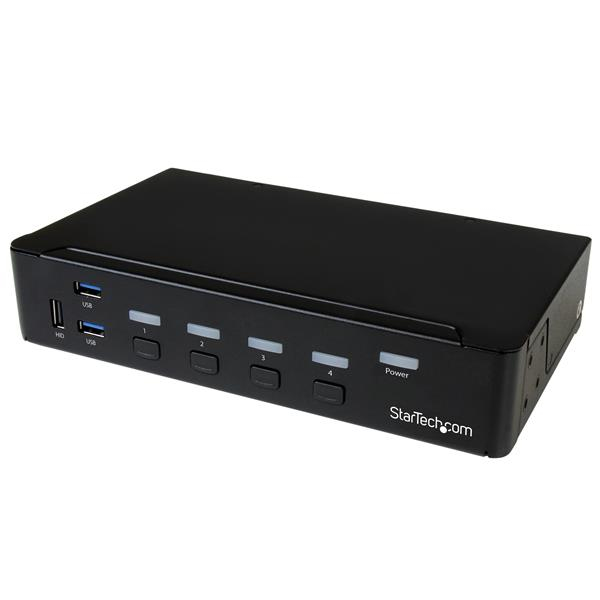

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Maximum operating distance: 10 m. Product colour: Black, LED indicators: Link, Power, Certification: CE, FCC, UL, PSE. Input voltage: 100-240 V, Output voltage: 12 V, Output current: 1.5 A. Compliance certificates: RoHS
Manufacturer: StarTech
SKU: SV431DPU3A2
Vendor: Aspects
Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

Astonishing picture quality

Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The StarTech.com Advantage

- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€458.56 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

Astonishing picture quality

Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The StarTech.com Advantage

- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support
Products specifications
Weight & dimensions
Width130 mm
Depth220 mm
Height43 mm
Weight1.06 kg
Other features
Audio supportYes
IP controlNo
Logistics data
Harmonized System (HS) code85176200
Packaging data
Package width244 mm
Package depth297 mm
Package height85 mm
Package weight1.61 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Power
Input voltage100-240 V
Output voltage12 V
Output current1.5 A
Power consumption (typical)18 W
Power plug typeType M
Compatible power plug typesAU, EU, UK, US
Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
Console ports3.5mm headphone, DisplayPort, USB A
Console USB ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity3
USB connector typeUSB Type-A
USB version3.2 Gen 1 (3.1 Gen 1)
Audio connectionsYes
Headphone outputs4
DC-in jackYes
Network
Ethernet LANNo
Design
Rack mountingYes
Product colourBlack
LED indicatorsLink, Power
Hot keysYes
CertificationCE, FCC, UL, PSE
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
HDCPYes
Plug and PlayYes
Daisy chainNo
Maximum operating distance10 m
Audio channels2.0
Display
Built-in displayNo
Packaging content
Quick installation guideYes
Rubber feetYes
Sustainability
Compliance certificatesRoHS
*
*
*
Products specifications
Weight & dimensions
Width130 mm
Depth220 mm
Height43 mm
Weight1.06 kg
Other features
Audio supportYes
IP controlNo
Logistics data
Harmonized System (HS) code85176200
Packaging data
Package width244 mm
Package depth297 mm
Package height85 mm
Package weight1.61 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Power
Input voltage100-240 V
Output voltage12 V
Output current1.5 A
Power consumption (typical)18 W
Power plug typeType M
Compatible power plug typesAU, EU, UK, US
Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
Console ports3.5mm headphone, DisplayPort, USB A
Console USB ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity3
USB connector typeUSB Type-A
USB version3.2 Gen 1 (3.1 Gen 1)
Audio connectionsYes
Headphone outputs4
DC-in jackYes
Network
Ethernet LANNo
Design
Rack mountingYes
Product colourBlack
LED indicatorsLink, Power
Hot keysYes
CertificationCE, FCC, UL, PSE
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
HDCPYes
Plug and PlayYes
Daisy chainNo
Maximum operating distance10 m
Audio channels2.0
Display
Built-in displayNo
Packaging content
Quick installation guideYes
Rubber feetYes
Sustainability
Compliance certificatesRoHS
