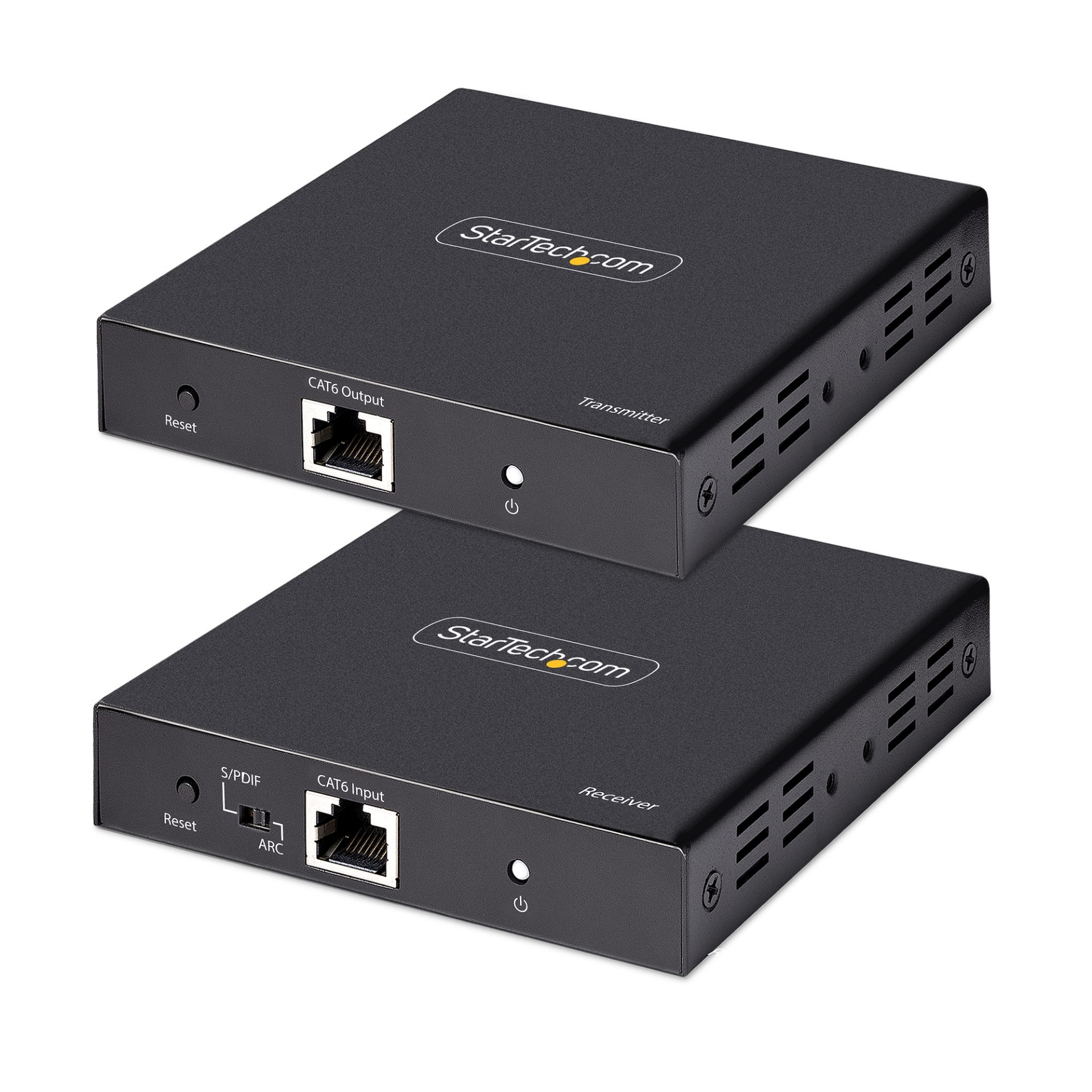

Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz
This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.
Power-Over-Cable
Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.
Versatile Installation Options
The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Products specifications
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 7.1 channels |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 8 kV |
| LED indicators | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| HDCP | Yes |
| Material | Metal |
| Rack mounting | No |
| Plug and Play | Yes |
| Daisy chain | Yes |
| Rubber feet | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| Width | 99 mm |
| Depth | 106 mm |
| Height | 26 mm |
| Weight | 210 g |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 10 pc(s) |
| Package width | 240 mm |
| Package depth | 176 mm |
| Package height | 80 mm |
| Package weight | 900 g |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| Operating voltage (transmitter) | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 0.1 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| Digital audio optical out | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting kit | Yes |
