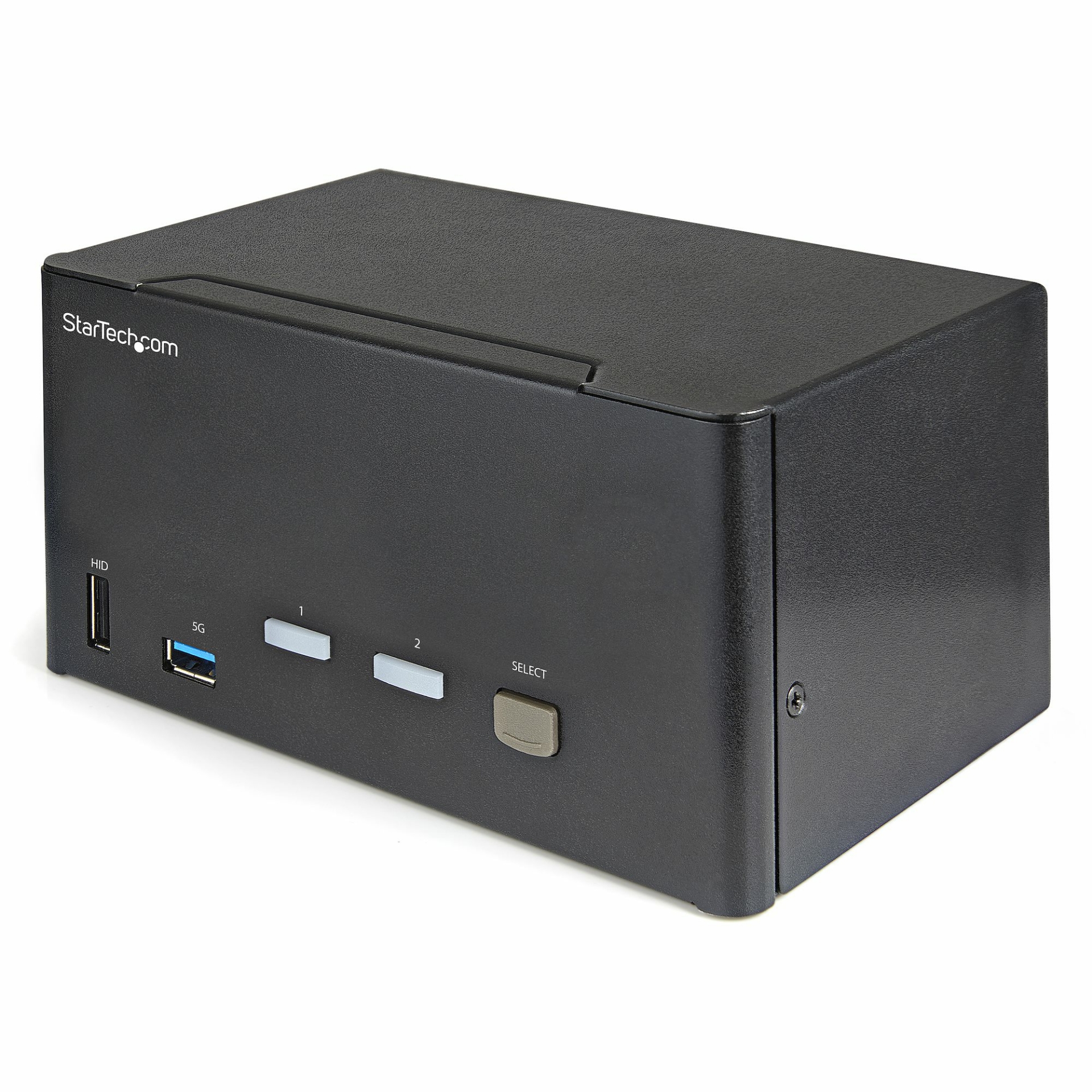

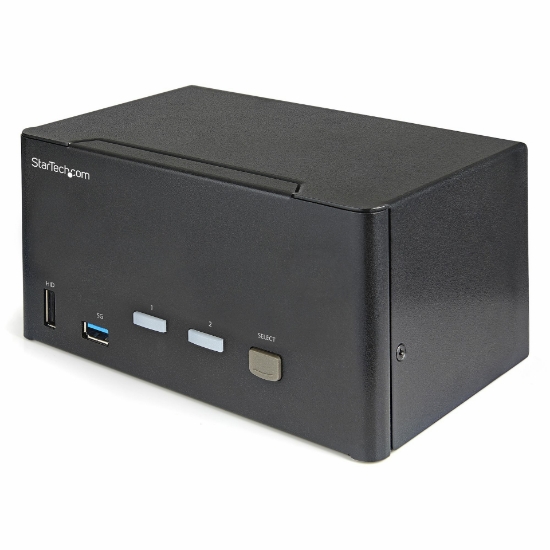

StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA

Be the first to review this product
StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 156000 h. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V. Width: 160 mm, Depth: 100 mm, Height: 98 mm
Manufacturer: StarTech
SKU: SV231TDPU34K
Vendor: Aspects
KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€471.71 incl tax
€470.68 incl tax
Lowest price in the last 30 days: $470.68
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Weight & dimensions
Width160 mm
Depth100 mm
Height98 mm
Weight850 g
Other features
IP controlNo
Logistics data
Harmonized System (HS) code85176200
Master (outer) case width397 mm
Master (outer) case length317 mm
Master (outer) case height280 mm
Products per master (outer) case6 pc(s)
Packaging data
Package width238 mm
Package depth189 mm
Package height91 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Power
Input voltage100 - 240 V
Input current1 A
Output voltage12 V
Output current3 A
Power consumption (typical)36 W
Power plug typeType M
Compatible power plug typesAU, EU, JP, UK, US
Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity9
DisplayPort version1.2
Console ports3.5mm headphone, DisplayPort, USB A
Console USB ports quantity4
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs3
DC-in jackYes
Design
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)156000 h
CertificationCE, RoHS, FCC
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth60 Hz
Scan interval3,8,15,30 s
HDCPYes
Daisy chainNo
Audio channels5.1
Number of displays supported3
Display
Built-in displayNo
On Screen Display (OSD)No
Packaging content
Quick installation guideYes
Rubber feetYes
*
*
*
