Control up to 16 USB or PS/2-connected computers from one keyboard, mouse and monitor

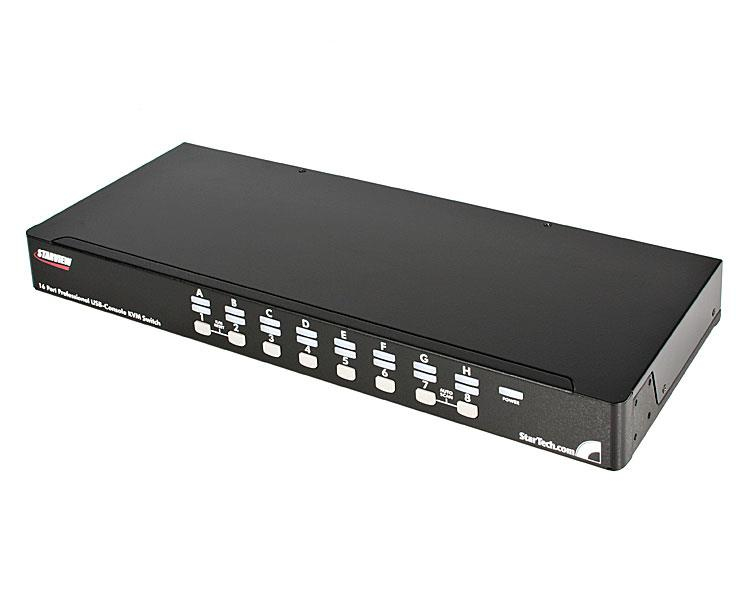

The SV1631DUSBGB 16 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 16 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 16 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch.
This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cascade configuration adds scalability and offers support for control of up to 136 computers
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Products specifications
| Width | 180 mm |
| Depth | 438 mm |
| Height | 45 mm |
| Weight | 3.1 kg |
| Connectivity technology | Wired |
| Power supply type | 115 - 230 VAC |
| Dimensions (WxDxH) | 180 x 438 x 45 mm |
| Ports quantity | 16 |
| Harmonized System (HS) code | 85176200 |
| Package width | 88 mm |
| Package depth | 595 mm |
| Package height | 264 mm |
| Package weight | 3.8 kg |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Input voltage | 110-240 V |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Audio connections | No |
| Product colour | Black |
| Maximum resolution | 1920 x 1440 pixels |
| Number of users | 1 user(s) |
| Built-in display | No |
| Cables included | PS/2 |
| Manual | Yes |
| AC adapter included | Yes |
