Sorry - this product is no longer available

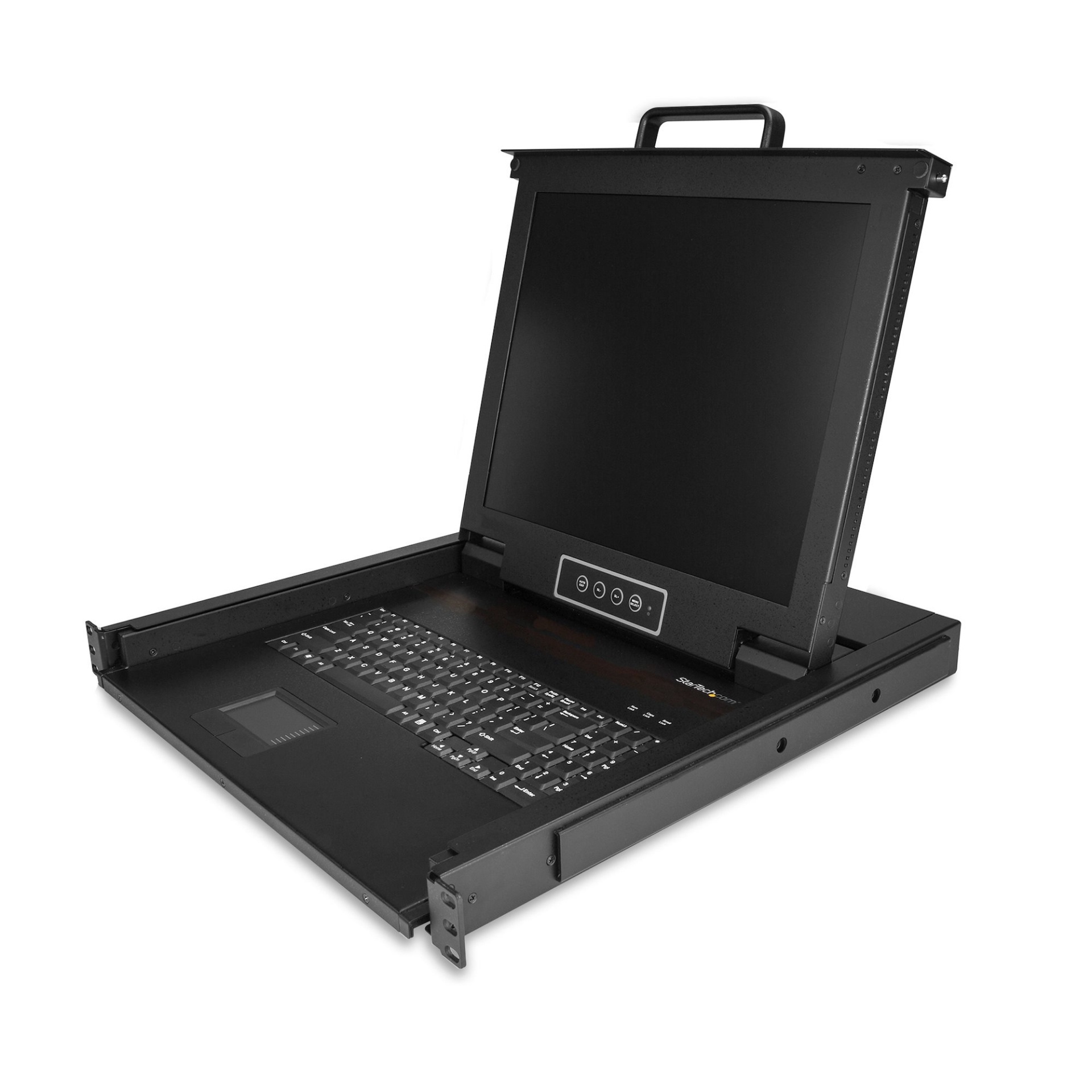

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display brightness: 250 cd/m². Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Certification: CE, FCC, PSE, UL. Power consumption (typical): 13 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 448 mm, Height: 471 mm, Depth: 42.5 mm
Manufacturer: StarTech
SKU: RKCONS1701
Vendor: Aspects
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€832.45 incl tax
Lowest price in the last 30 days: $832.45
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Weight & dimensions
Width448 mm
Height471 mm
Depth42.5 mm
Weight11.6 kg
Mounting depth (min)45 cm
Mounting depth (max)79 cm
Logistics data
Master (outer) case width615 mm
Master (outer) case length765 mm
Master (outer) case height185 mm
Products per master (outer) case1 pc(s)
Packaging data
Package weight17.1 kg
Package width615 mm
Package depth765 mm
Package height185 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Power
Power consumption (typical)13 W
AC adapter input voltage100 - 240 V
Input current1.5 A
Certificates
CertificationCE, FCC, PSE, UL
Technical details
MaterialSteel
Mean time between failures (MTBF)50000 h
Operating relative humidity (H-H)10 - 80%
Rack mountingYes
Daisy chainNo
Key lockNo
IP controlNo
LED indicatorsPower, Status
Cable length1.82 m
Compliance certificatesRoHS
Rack capacity1U
Ports & interfaces
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Display
Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
Display brightness250 cd/m²
Contrast ratio (typical)1000:1
Viewing angle, horizontal170°
Viewing angle, vertical160°
Pixel pitch0.264 x 0.264 mm
Aspect ratio5:4
Display typeLCD
Response time5 ms
Display number of colours16.78 million colours
Colour depth8 bit
Packaging content
Cables includedKVM
Screws includedYes
Number of screws8
Mounting brackets includedYes
Cage nuts includedYes
Number of cage nuts8
Included power plug typesANZ, EU, JP, NA, UK
Quick installation guideYes
Rack mount kitYes
*
*
*
Products specifications
Weight & dimensions
Width448 mm
Height471 mm
Depth42.5 mm
Weight11.6 kg
Mounting depth (min)45 cm
Mounting depth (max)79 cm
Logistics data
Master (outer) case width615 mm
Master (outer) case length765 mm
Master (outer) case height185 mm
Products per master (outer) case1 pc(s)
Packaging data
Package weight17.1 kg
Package width615 mm
Package depth765 mm
Package height185 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Power
Power consumption (typical)13 W
AC adapter input voltage100 - 240 V
Input current1.5 A
Certificates
CertificationCE, FCC, PSE, UL
Technical details
MaterialSteel
Mean time between failures (MTBF)50000 h
Operating relative humidity (H-H)10 - 80%
Rack mountingYes
Daisy chainNo
Key lockNo
IP controlNo
LED indicatorsPower, Status
Cable length1.82 m
Compliance certificatesRoHS
Rack capacity1U
Ports & interfaces
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Display
Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
Display brightness250 cd/m²
Contrast ratio (typical)1000:1
Viewing angle, horizontal170°
Viewing angle, vertical160°
Pixel pitch0.264 x 0.264 mm
Aspect ratio5:4
Display typeLCD
Response time5 ms
Display number of colours16.78 million colours
Colour depth8 bit
Packaging content
Cables includedKVM
Screws includedYes
Number of screws8
Mounting brackets includedYes
Cage nuts includedYes
Number of cage nuts8
Included power plug typesANZ, EU, JP, NA, UK
Quick installation guideYes
Rack mount kitYes
