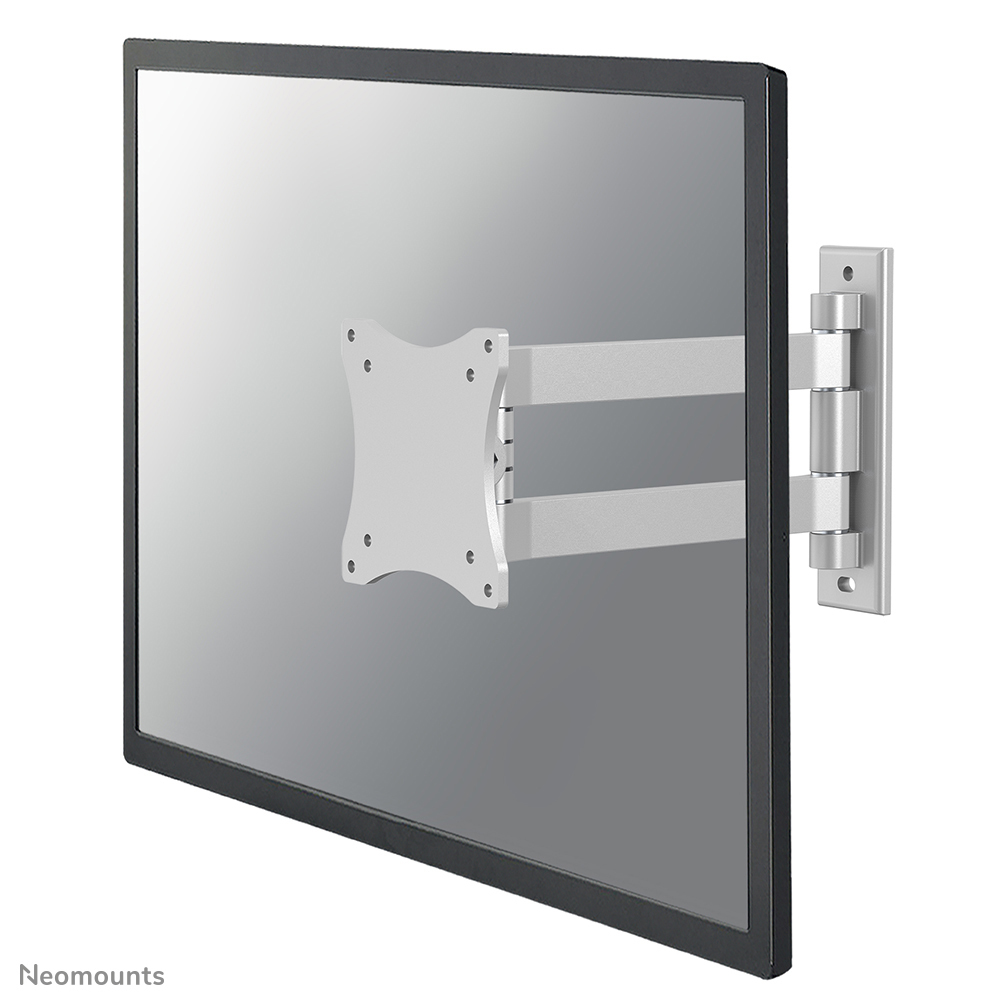

The Neomounts wall mount, model FPMA-W820 is a tilt- and swivel wall mount for flat screens up to 27" (69 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomounts' tilt (90°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 25 centimetres.
Neomounts FPMA-W820 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 15 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
Products specifications
| Weight | 830 g |
| Mounting interface | VESA |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 310 mm |
| Master (outer) case gross weight | 13 kg |
| Master (outer) case net weight | 12 kg |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 360 pc(s) |
| Package width | 178 mm |
| Package depth | 50 mm |
| Package height | 285 mm |
| Package weight | 1 kg |
| Country of origin | China |
| Package net weight | 1 kg |
| Product colour | Black |
| Housing material | Aluminium |
| Compatibility | LCD/LED/TFT |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | 0 - 180° |
| Rotating | Yes |
| Type | Full motion |
| Distance to the wall (max) | 25 cm |
| Distance to the wall (min) | 5 cm |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 68.6 cm (27") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Mounting type | Wall |
