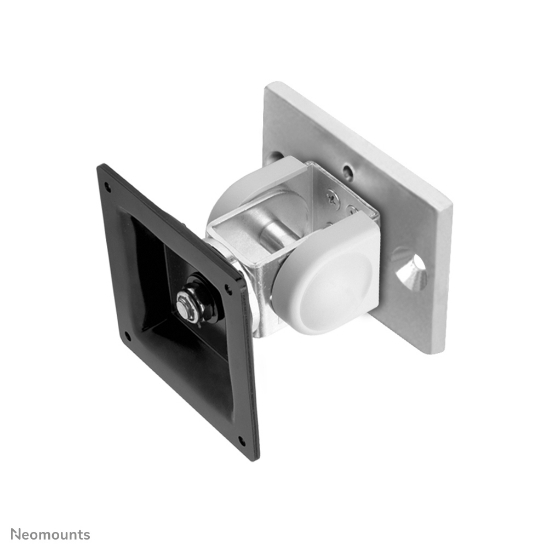

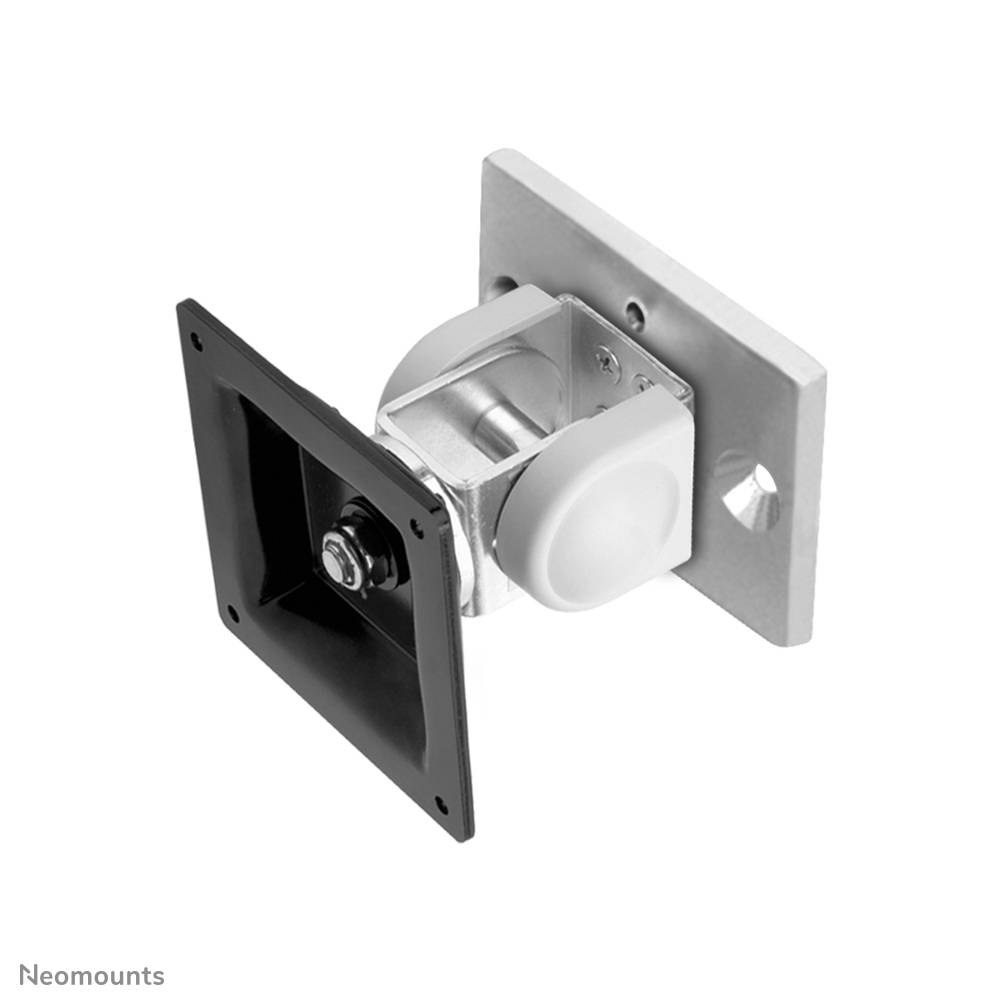

The Neomounts FPMA-DTBW100 monitor bracket is suitable for 10-30" screens with a maximum capacity of 8 kg and designed for installation on the FPMA-DTB100, FPMA-DTB200 and FPMA-WTB100 toolbar rails. The monitor bracket is 8 cm deep and can both tilt and rotate, enabling optimal use of the screen's functionality.
The FPMA-DTBW100 monitor bracket is suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available.
Products specifications
| Depth | 80 mm |
| Weight | 1.25 kg |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 15.6 kg |
| Products per master (outer) case | 12 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 15 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 384 pc(s) |
| Package width | 130 mm |
| Package depth | 130 mm |
| Package height | 110 mm |
| Package net weight | 1.1 kg |
| Package weight | 1.1 kg |
| Housing material | Steel |
| Product colour | Grey |
| Depth adjustment range | 0 - 80 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180° |
| Angle of rotation | 270° |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 76.2 cm (30") |
| Mounting | Bolt-through |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Distance to the wall (min) | 8 cm |
| Distance to the wall (max) | 8 cm |
