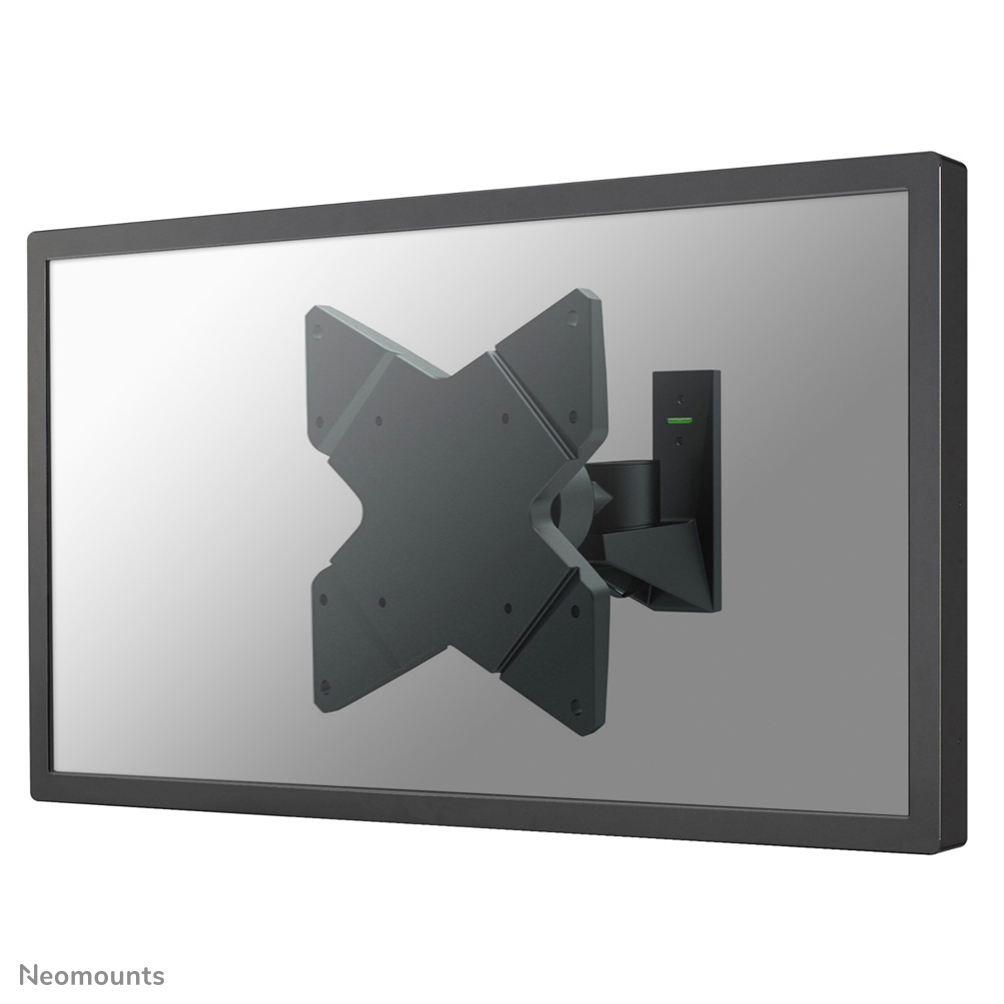

The Neomounts wall mount, model FPMA-W815 is a tilt-, swivel and rotatable wall mount for flat screens up to 40". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomounts' tilt (30°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is 9 centimetres deep.
Neomounts FPMA-W815 has one pivot point and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
Products specifications
| Weight | 1.16 kg |
| Master (outer) case width | 830 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 12 kg |
| Master (outer) case net weight | 9.3 kg |
| Products per master (outer) case | 8 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 120 pc(s) |
| Package width | 230 mm |
| Package depth | 100 mm |
| Package height | 245 mm |
| Package weight | 1.2 kg |
| Country of origin | China |
| Package net weight | 1.16 kg |
| Product colour | Black |
| Housing material | Aluminium |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 30° |
| Swivelling | Yes |
| Swivel angle | 80° |
| Swivel angle range | 0 - 80° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Type | Full motion |
| Distance to the wall (max) | 9 cm |
| Distance to the wall (min) | 0 mm |
| Maximum weight capacity | 20 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 101.6 cm (40") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200 |
| Mounting type | Wall |
