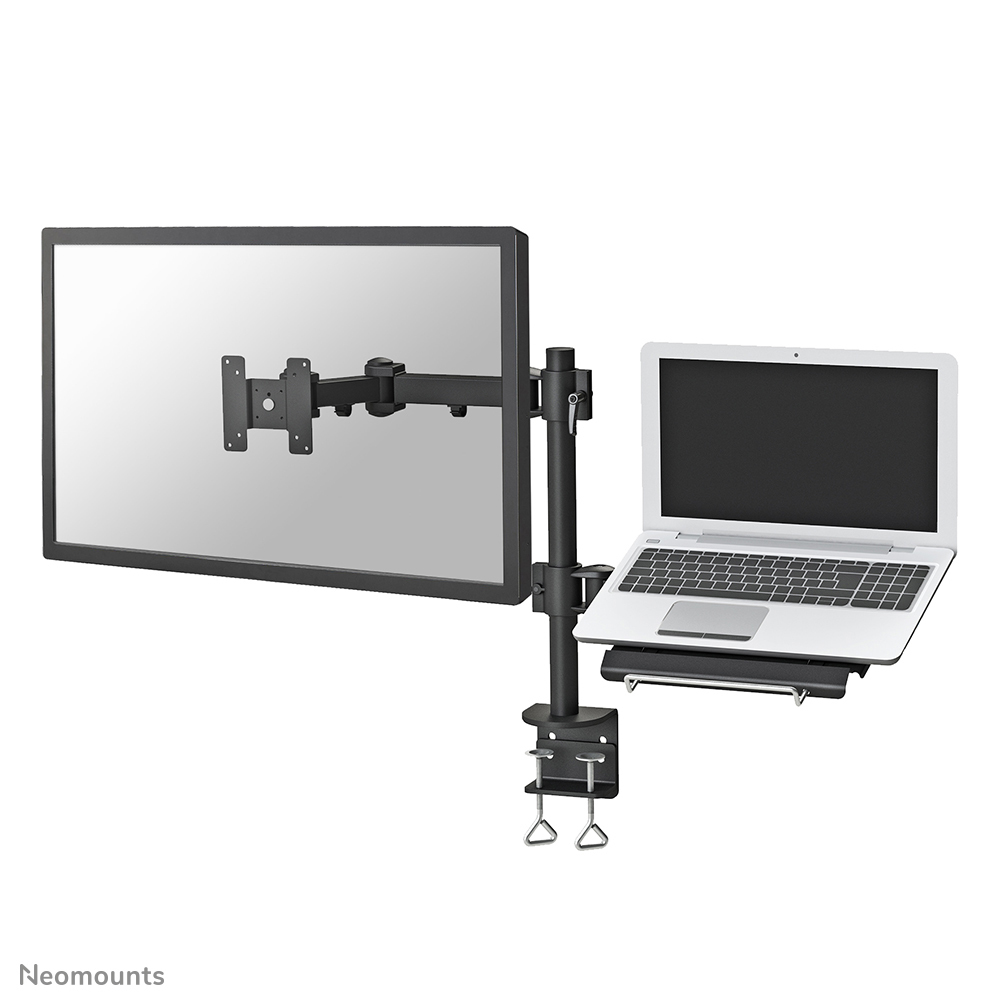

The Neomounts desk mount, model FPMA-D960NOTEBOOK is a tilt-, swivel and rotatable desk mount for flat screens up to 27" notebooks up to 22". This mount is a great choice for space saving placement on desks using a desk clamp.
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. Depth adjustable from 10 to 43 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D960NOTEBOOK has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 10 kg each screen and 15 kg each notebook. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Depth | 1430 mm |
| Height | 450 mm |
| Weight | 5.59 kg |
| Master (outer) case width | 610 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 320 mm |
| Master (outer) case gross weight | 15.1 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 13.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 40 pc(s) |
| Package width | 579 mm |
| Package depth | 315 mm |
| Package height | 127 mm |
| Package weight | 6.2 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 450 mm |
| Depth adjustment range | 100 - 430 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Maximum weight capacity | 10 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 8 mm |
| Desk thickness (max) | 10 cm |
| Distance to the wall (min) | 10 cm |
| Distance to the wall (max) | 43 cm |
