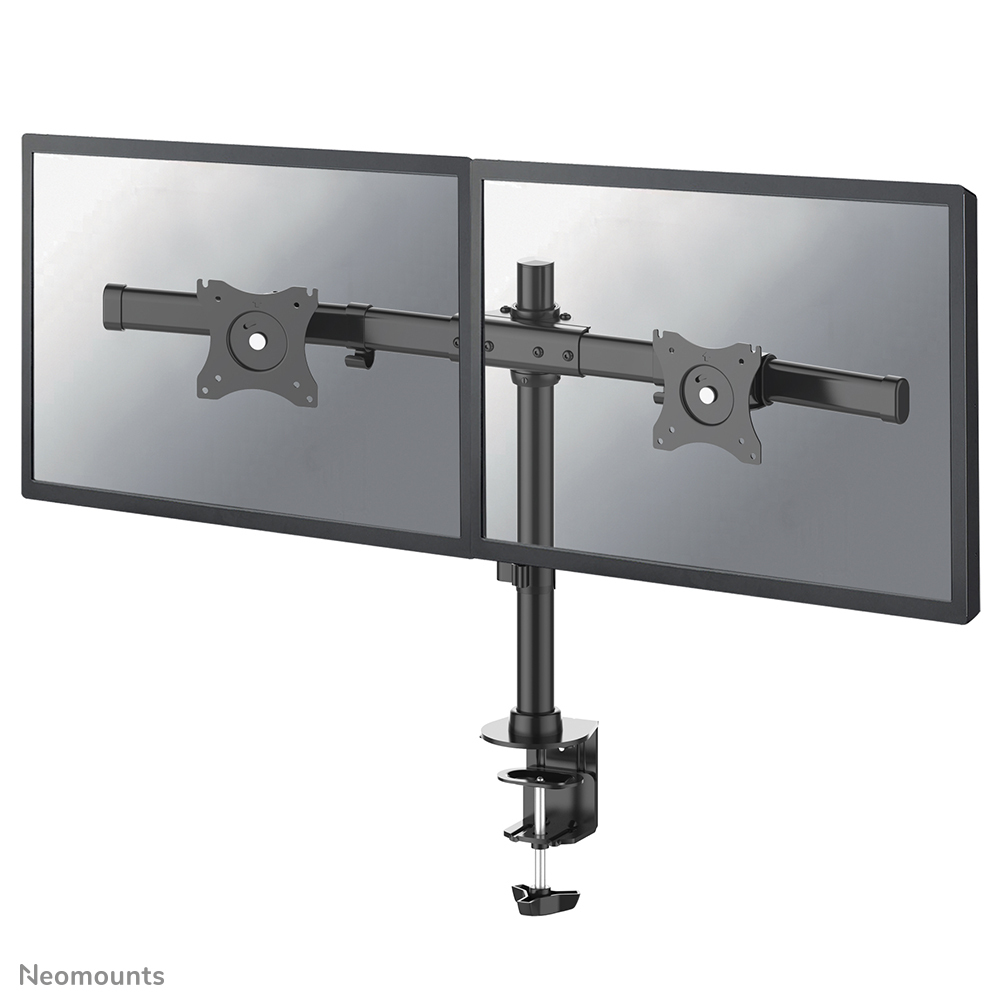

The Neomounts desk mount, model FPMA-DCB100DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This dual crossbar mount is a great choice for space saving placement on desks using a desk clamp or desk grommet.
Neomounts versatile tilt (+45°/-45°), rotate (360°) and swivel (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. The cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-DCB100DBLACK has a crossbar with two monitor holders with one pivot point and is suitable for screens up to 27". The weight capacity of this product is 10 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. The pole of the desk mount has a diameter of 35 mm.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. This mount is the ultimate save spacer on your desk.
All installation material is included with the product.
Products specifications
| Depth | 80 mm |
| Height | 450 mm |
| Weight | 4.03 kg |
| Master (outer) case width | 345 mm |
| Master (outer) case length | 255 mm |
| Master (outer) case height | 525 mm |
| Master (outer) case gross weight | 21.1 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 16.5 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 100 pc(s) |
| Package width | 166 mm |
| Package depth | 120 mm |
| Package height | 512 mm |
| Package weight | 5.3 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 450 mm |
| Depth adjustment range | 0 - 80 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivelling | Yes |
| Swivel angle | 30° |
| Swivel angle range | -15 - 15° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Number of pivot points | 1 |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 10 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (max) | 9 cm |
