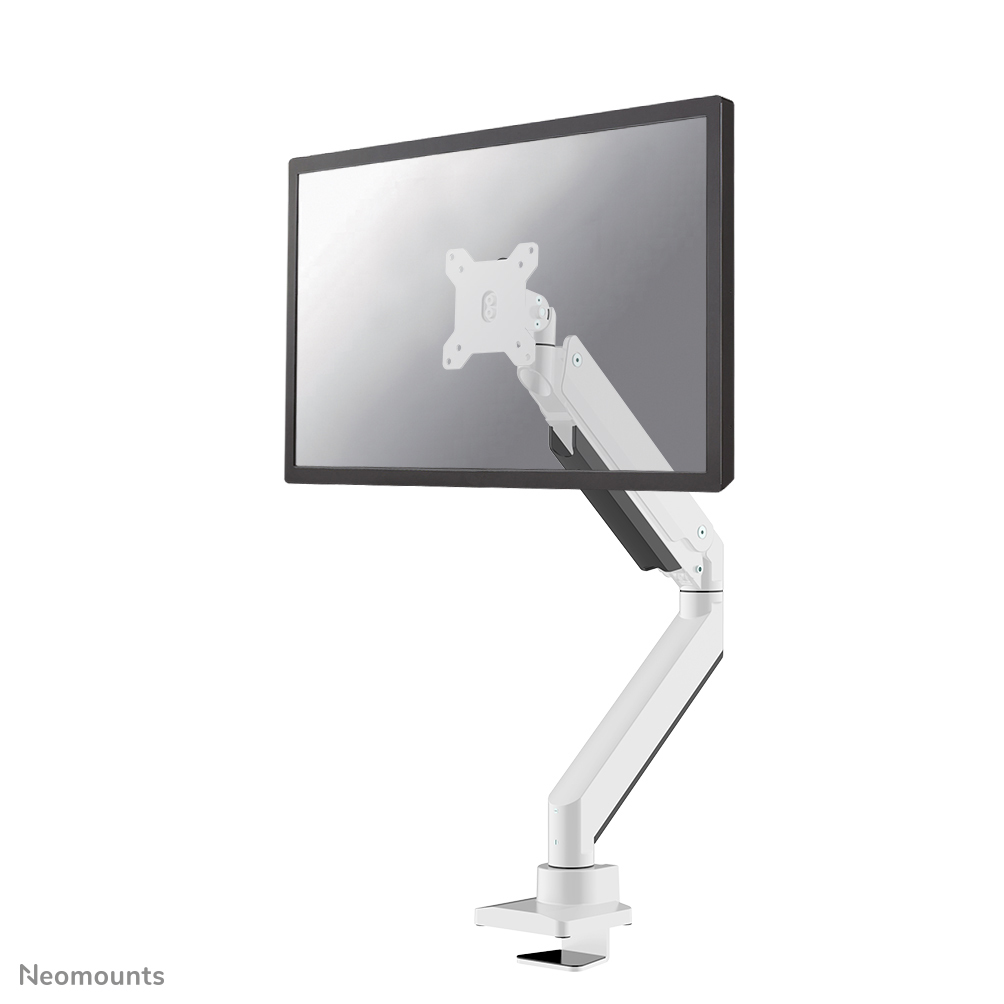

The Neomounts NM-D77WHITE is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomountss' unique tilt (180°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 59 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775WHITE has three pivot points and is suitable for flat screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
For curved monitor screens we recommend our NM-D775 PLUS models; the NM-D775WHITEPLUS mounts are specifically designed to support curved screens. They feature a strengthen head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Height | 600 mm |
| Master (outer) case width | 575 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 20.8 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 18.7 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 72 pc(s) |
| Package width | 255 mm |
| Package depth | 110 mm |
| Package height | 560 mm |
| Package net weight | 5.2 kg |
| Product colour | White |
| Orientation | Landscape |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 270 - 600 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 630 mm |
| Tilt angle range | 0 - 90° |
| Swivel angle | 360° |
| Angle of rotation | 180° |
| Cable management | Yes |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Bolt-through |
| Suitable for TV | Yes |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
