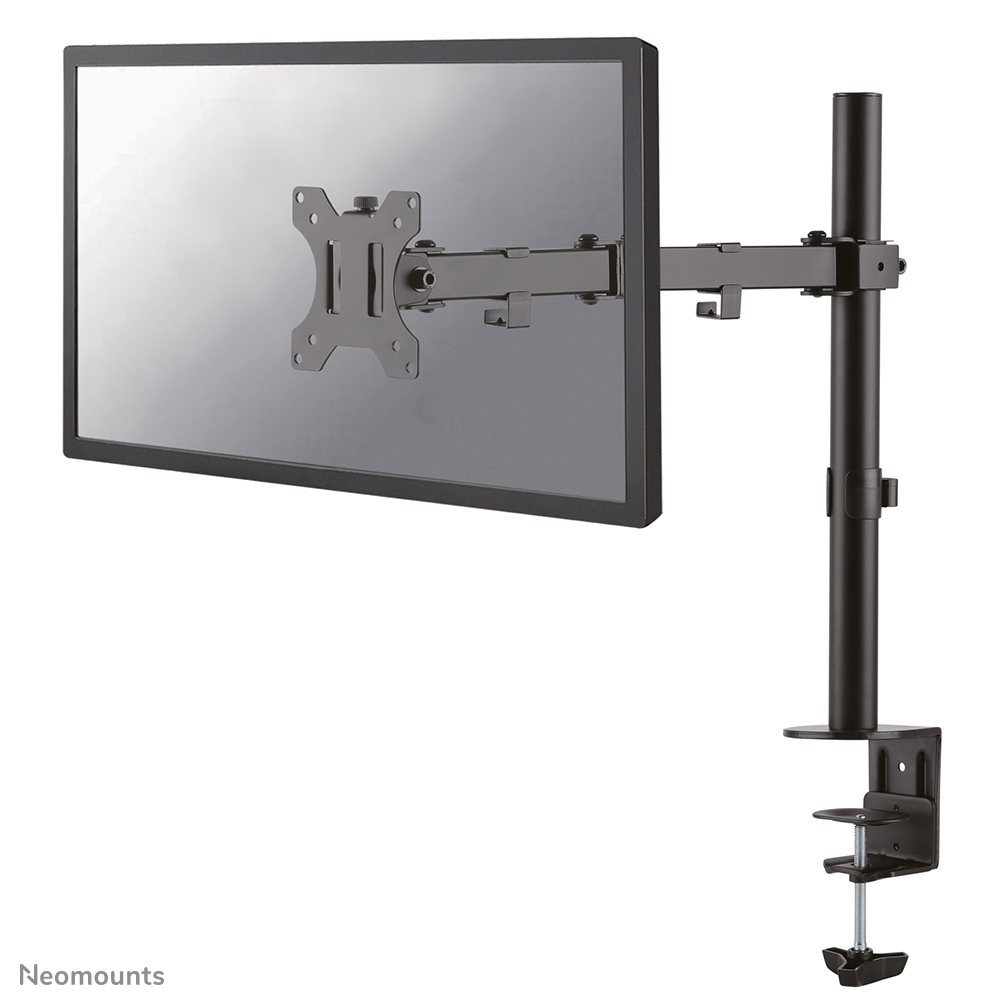

The Neomounts desk mount, model FPMA-D550BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550BLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 8 kg |
| Mounting type | Desk |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum screen size | 81.3 cm (32") |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Cable management | Yes |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Swivel angle | 180° |
| Height adjustment | Yes |
| Height adjustment range | 0 - 440 mm |
| Adjustable depth | Yes |
| VESA mounting | Yes |
| Weight | 3.32 kg |
| Depth | 40 mm |
| Height | 548 mm |
| Distance to the wall (min) | 4 cm |
| Distance to the wall (max) | 46 cm |
| Master (outer) case net weight | 2.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 96 pc(s) |
| Package height | 489 mm |
| Package width | 180 mm |
| Package depth | 120 mm |
| Package weight | 3.8 kg |
| Country of origin | China |
