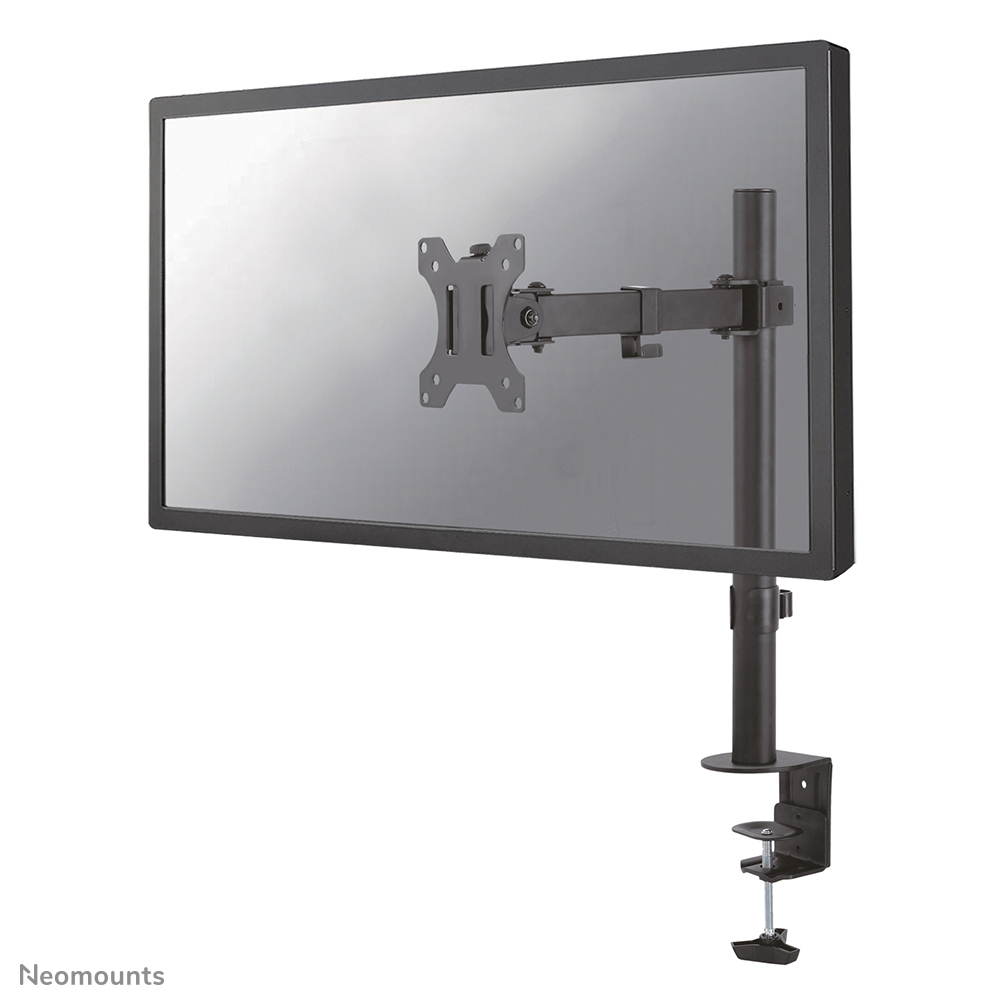

The Neomounts desk mount, model FPMA-D540BLACK is a tilt-, swivel and rotatable desk mount for monitors up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 2,1 to 42,2 centimeters. The depth is adjustable from 0 to 26,6 centimeters. An innovative cable management routes cables from mount to flat screen. Additionally, the mount features a Quick-release VESA, that allows you to attach the monitor in a wink of an eye.
Neomounts FPMA-D540BLACK has two pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Width | 114 mm |
| Depth | 346 mm |
| Height | 623 mm |
| Weight | 3.03 kg |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 21.3 kg |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 18.2 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 144 pc(s) |
| Package width | 489 mm |
| Package depth | 120 mm |
| Package height | 110 mm |
| Package net weight | 3.4 kg |
| Package weight | 3.4 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 21 - 422 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 266 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 33 cm (13") |
| Number of displays supported | 1 |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Depth (min) | 0 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
