Enjoy the most natural interactive digital experience

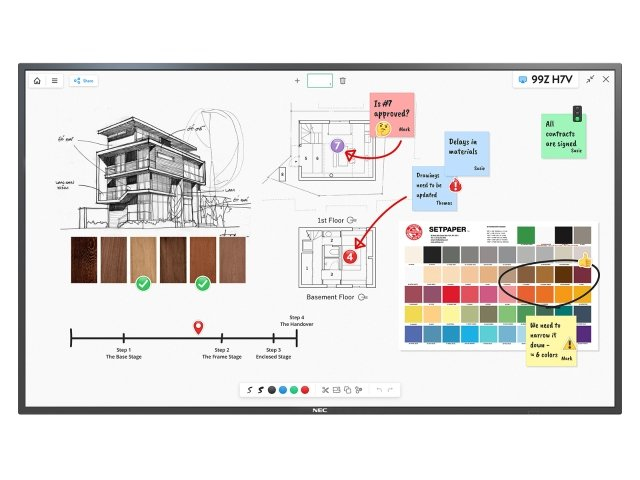

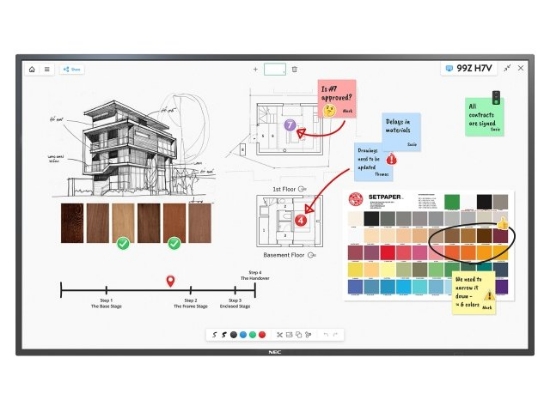

Modern meeting spaces drive the demand for advanced touch technology with innovative design. To support interactive sessions, the NEC InGlassTM Touch Board along with the responsive passive pen brings superior paper-like writing with minimal latency to a digital canvas. With its slim bezel design, the technology seamlessly integrates into modern interior styling.
High brightness levels ensure excellent readability and image reproduction even in today’s typically bright meeting spaces where maintaining a motivational environment is paramount. The anti-glare coating minimizes disturbing reflections and helps to eliminate niggling fingerprints on the touch surface.
Products specifications
| Display width | 1284.5 mm |
| Display depth | 70.9 mm |
| Display height | 757.3 mm |
| Display weight | 38.5 kg |
| Package width | 1430 mm |
| Package depth | 250 mm |
| Package height | 920 mm |
| Package weight | 47 kg |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 110 W |
| Power consumption (standby) | 2 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 100 kWh |
| Energy consumption (HDR) per 1000 hours | 90 kWh |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| HDMI ports quantity | 2 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| RS-232 interface | Yes |
| Product design | Interactive flat panel |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.84 cm |
| Bezel width (side) | 1.84 cm |
| Bezel width (top) | 1.84 cm |
| Anti-glare screen | Yes |
| Positioning accuracy | 1 mm |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Panel type | IPS |
| LED backlighting type | Edge-LED |
| Display diagonal | 139.7 cm (55") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.076 billion colours |
| Display diagonal (metric) | 138.8 cm |
| Maximum frame rate | 60 fps |
| Horizontal scan range | 26 - 91.1 kHz |
| Vertical scan range | 23 - 86 Hz |
| Haze rate | 5% |
| Surface hardness | 7H |
| Touch response time | 15 ms |
| Remote control included | Yes |
| Batteries included | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Cables included | HDMI, Power |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Video formats supported | MP4, MPG, TS |
| Audio formats supported | AAC, LPCM, MP3, WMV |
| Image formats supported | JPG |
