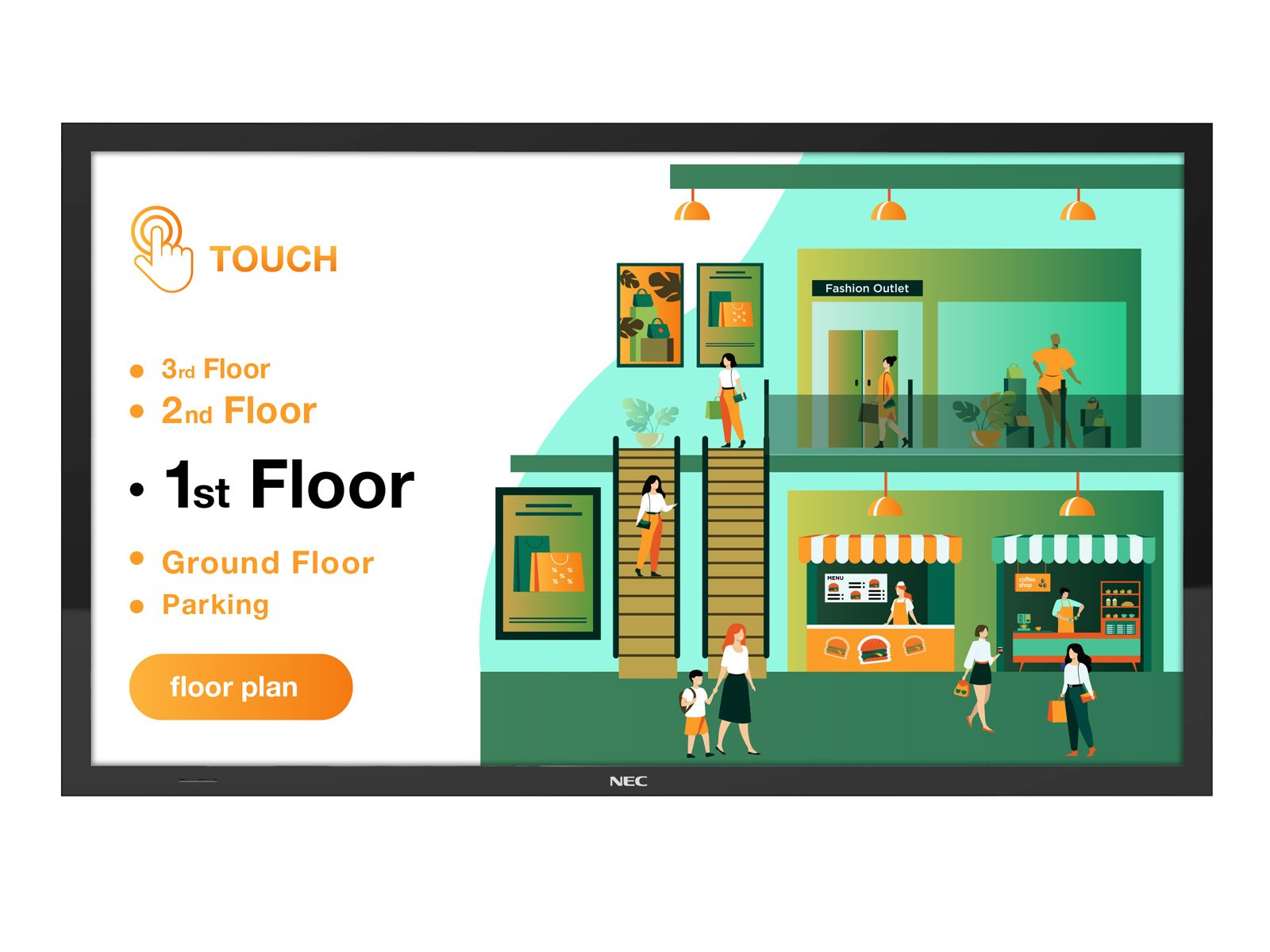

Superior touch performance for demanding environments
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With a modern, bezel-free styling, 24/7 operation and reduced reflections when ambient light is high, the NEC MultiSync® M series PCAP touch engages audiences and facilitates collaboration.
With the powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready to provide an exceptional interactive experience to your customers. Perfectly suited to the rigors of public usage, the robust glass surface is resistant to scratches whilst its anti-glare property makes the M series PCAP touch models suitable for use even in areas of high ambient light.
Products specifications
| Display width | 1275.8 mm |
| Display depth | 67.8 mm |
| Display height | 746.8 mm |
| Display weight | 36.4 kg |
| Harmonized System (HS) code | 85285210 |
| Package width | 1430 mm |
| Package depth | 250 mm |
| Package height | 920 mm |
| Package weight | 46.5 kg |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 110 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 100 kWh |
| Energy consumption (HDR) per 1000 hours | 90 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Number of speaker outputs | 1 |
| RS-232 interface | Yes |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Purpose | Universal |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| LED backlighting type | Edge-LED |
| Display diagonal | 139.7 cm (55") |
| Display technology | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 26 - 91.1 kHz |
| Vertical scan range | 23 - 86 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 5 - 10% |
| Surface hardness | 6 |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI, USB |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
