The Intel S4600 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
The Intel SSD S4600 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.

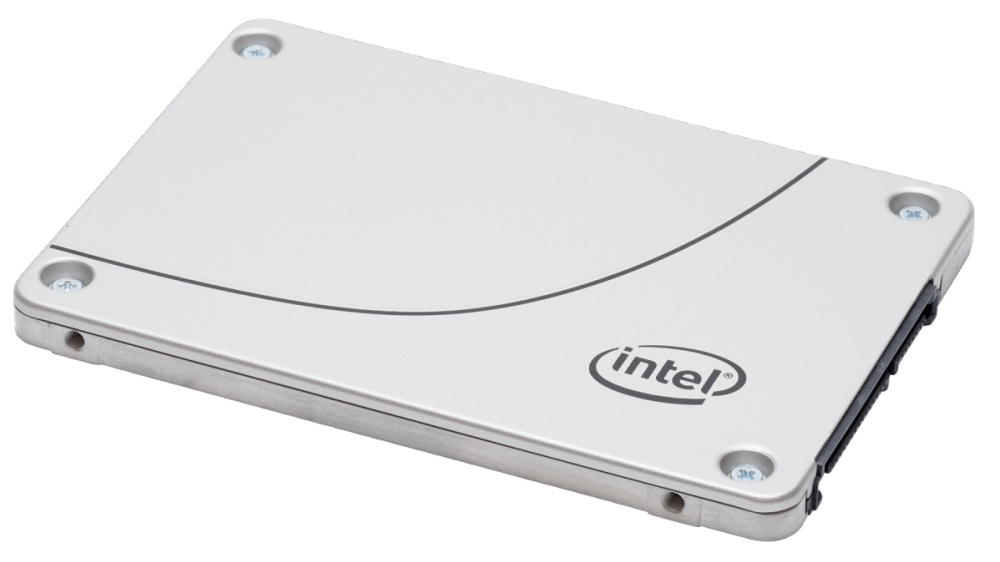

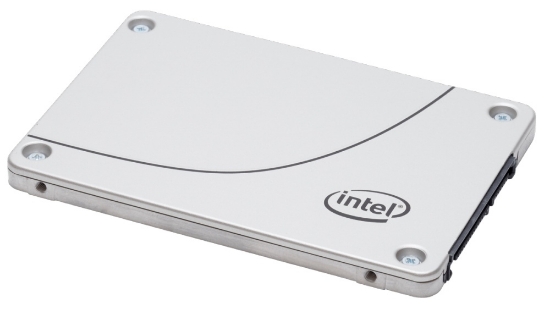

The Intel S4600 Enterprise Mainstream SATA solid-state drive is shown in the following figure.
- Industry-standard 2.5-inch or 3.5-inch form factors
- Cost-effective Intel 3D NAND TLC Flash Memory
- Endurance of 3 drive writes per day (DWPD) for 5 years, using Intel High Endurance Technology (HET). The total number of bytes that can be written to the drive (TBW) is as follows
240 GB drive: 1.40 PB
480 GB drive: 2.95 PB
960 GB drive: 5.25 PB
1.92 TB drive: 10.84 PB
- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
- High reliability and enhanced ruggedness
- Energy saving, with 5 W typical power consumption per drive
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Full end-to-end data path protection
- Thermal throttling to extend the life of the drive
- Enhanced power loss data protection
Products specifications
| NAND flash type | TLC (Triple Level Cell) |
| Security algorithms | 256-bit AES |
| SSD capacity | 480 GB |
| SSD form factor | 2.5" |
| Interface | SAS |
| Memory type | 3D TLC |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 72000 IOPS |
| Random write (4KB) | 60000 IOPS |
| Read latency | 36 µs |
| Write latency | 36 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Power loss protection | Yes |
| Data path protection | Yes |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Endurance rating (for 5 years) | 3.36 GB/day |
| TBW rating | 2.95 |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| Product colour | Aluminium |
| Compliance certificates | RoHS |
| Compatible products | ThinkSystem ST550, SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530, SN550, SN850 |
| Harmonized System (HS) code | 84717070 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -55 - 95 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Operating shock | 1000 G |
| Maximum operating altitude | 3050 m |
| Power consumption (average) | 4.5 W |
| Intel High Endurance Technology (HET) | Yes |
