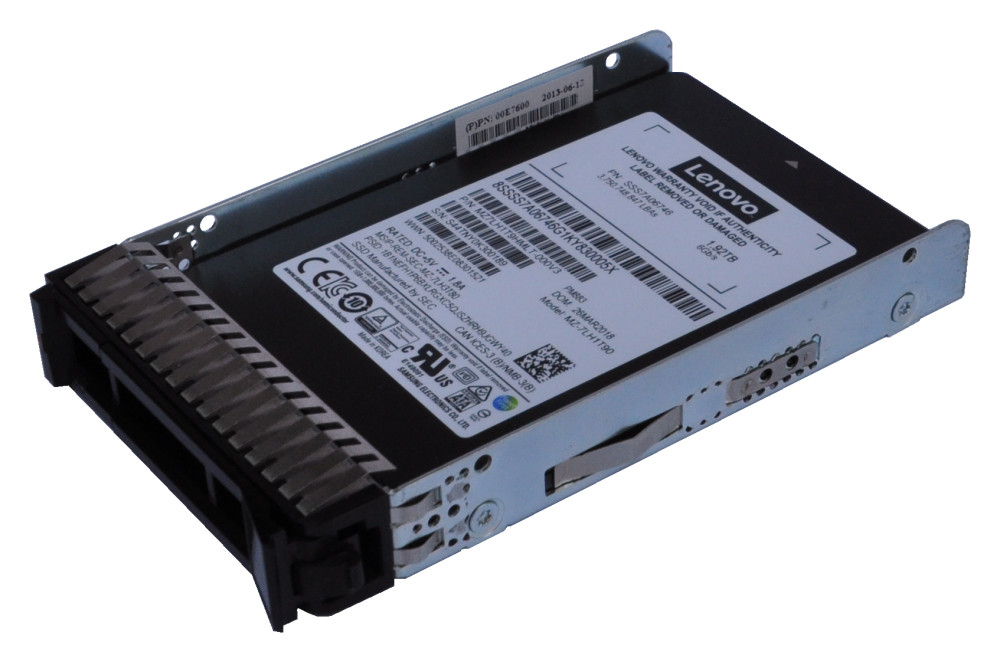

The Lenovo ThinkSystem PM883 Entry SATA 6Gb solid-state drives (SSDs) in capacities ranging from 240 GB to 7.86 TB are general-purpose SSDs based on the Samsung PM883 platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM883 Entry SATA SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Products specifications
| SSD capacity | 960 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 520 MB/s |
| Random read (4KB) | 98000 IOPS |
| Random write (4KB) | 25000 IOPS |
| Read latency | 120 µs |
| Write latency | 40 µs |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Endurance rating (for 5 years) | 0.8 GB/day |
| TBW rating | 1366 |
| Certification | UL, TUV, FCC, CE Mark, C-Tick Mark, BSMI, KCC |
| Width | 133 mm |
| Depth | 174 mm |
| Height | 63 mm |
| Weight | 433 g |
| Harmonized System (HS) code | 84717070 |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Operating vibration | 2.17 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Power consumption (read) | 2.3 W |
| Power consumption (write) | 3.1 W |
