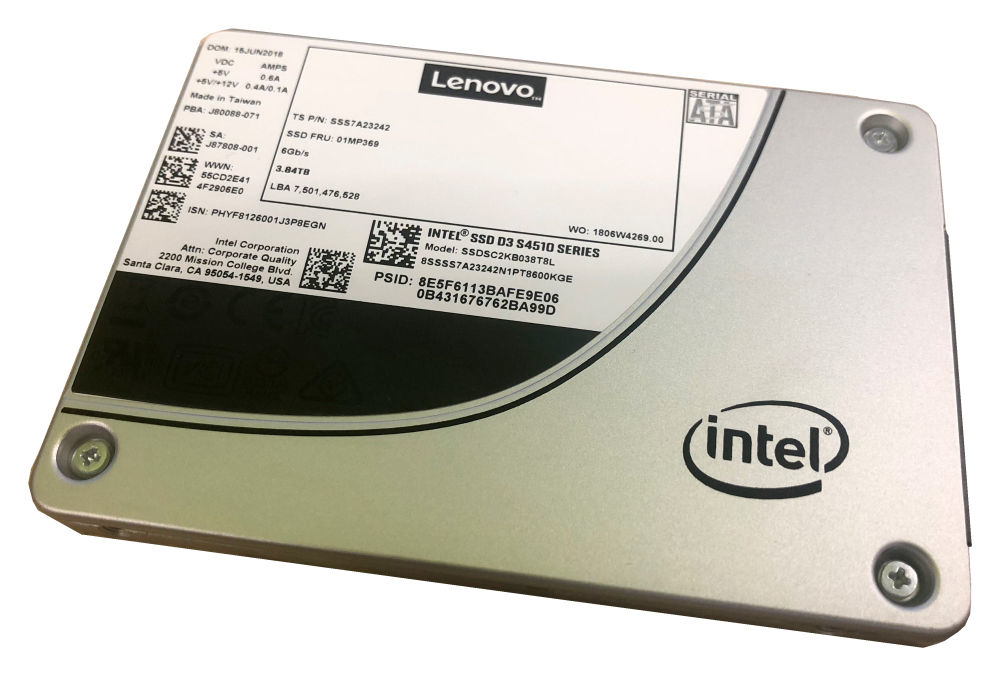

The Intel S4510 Entry SATA solid-state drives (SSDs) for Lenovo servers use 64-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4510 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4510 SSDs and consider their use in IT solutions.
Products specifications
| Security algorithms | 256-bit AES |
| SSD capacity | 240 GB |
| SSD form factor | 3.5" |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 290 MB/s |
| Maximum read (4KB) | 85000 IOPS |
| Maximum write (4KB) | 17000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 63 g |
| Harmonized System (HS) code | 84717070 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Maximum operating altitude | 3050 m |
