Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration

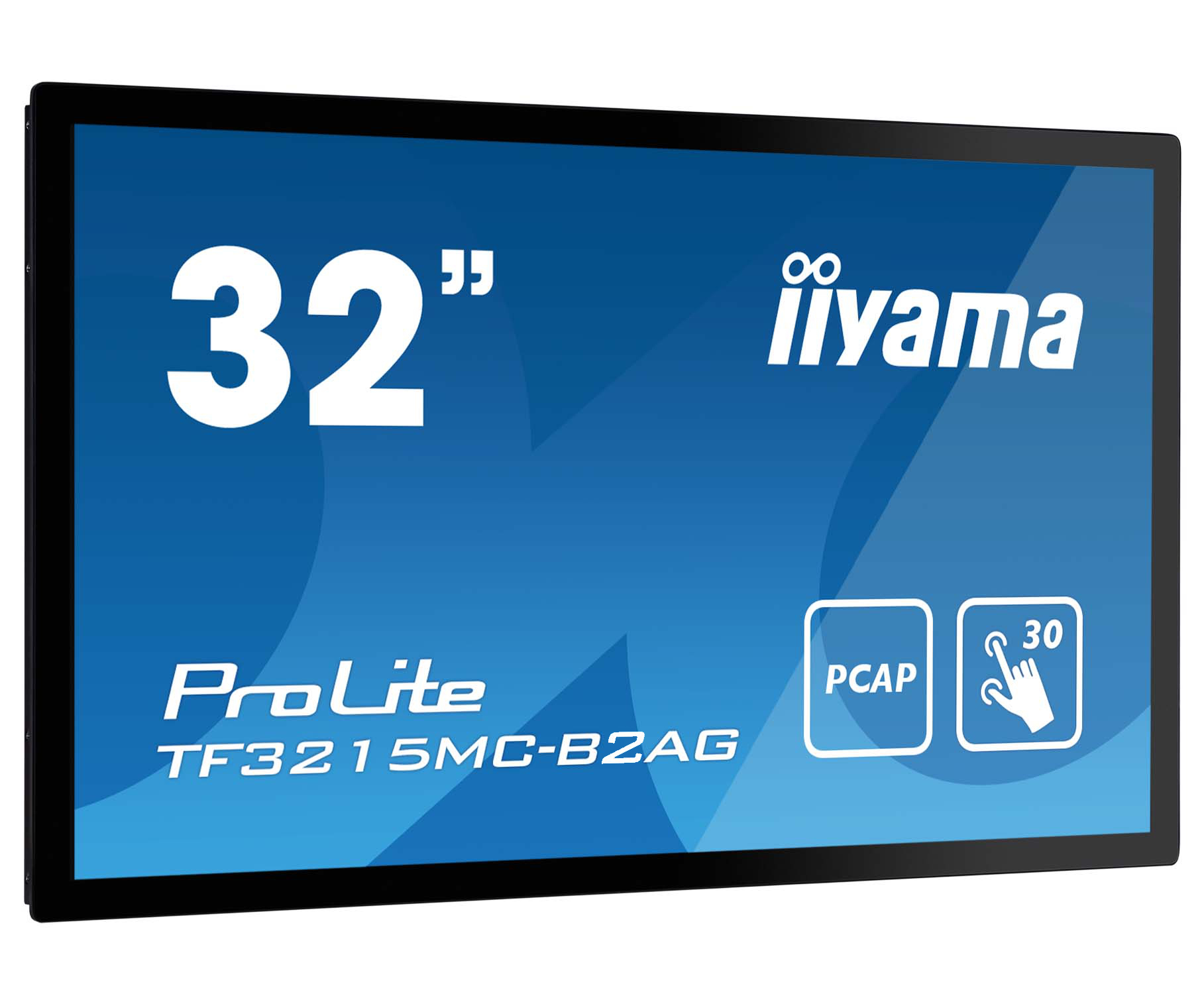

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Products specifications
| Width (without stand) | 745.5 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 437 mm |
| Weight (without stand) | 10 kg |
| International Protection (IP) code | IP65 |
| IK code | IK07 |
| Compliance certificates | REACH |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 12.8 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 27 kWh |
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Market positioning | Business |
| Product colour | Black |
| Housing material | Metal |
| Glass thickness | 6 mm |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | VA |
| Touchscreen | Yes |
| Touchscreen type | Kiosk |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 30 |
| Display brightness (typical) | 500 cd/m² |
| Response time | 8 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Digital horizontal frequency | 30 - 68 kHz |
| Display diagonal (metric) | 80 cm |
| Surface hardness | 6H |
| Cables included | AC, HDMI, USB |
| Quick start guide | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Cable management | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
