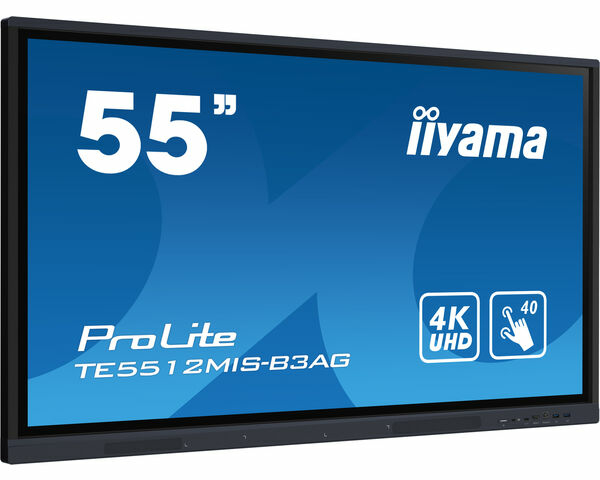

55" Interactive 4K UHD Touchscreen elevating interactive collaboration
The TE5512MIS-B3AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR, iiWare 10 with Android 11, Wifi, and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings.
Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE5512MIS-B3AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users.
Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
Products specifications
| Display width | 1271 mm |
| Display depth | 87 mm |
| Display height | 774 mm |
| Display weight | 26.1 kg |
| Width | 1929 mm |
| Depth | 69.5 mm |
| Height | 1100 mm |
| Weight | 63.8 kg |
| Quick start guide | Yes |
| Housing material | Metal |
| Harmonized System (HS) code | 85285210 |
| Package width | 1401 mm |
| Package depth | 859 mm |
| Package height | 220 mm |
| Package weight | 34.5 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 111 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 444 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Compliance certificates | RoHS |
| HDMI ports quantity | 4 |
| DVI port | Yes |
| VGA (D-Sub) input ports | 1 |
| USB port | Yes |
| USB ports quantity | 5 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| PC Audio in | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 200 mm |
| Bezel width (bottom) | 4.6 cm |
| Bezel width (side) | 1.9 cm |
| Bezel width (top) | 1.9 cm |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Operating hours (hours/days) | 18/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Panel type | IPS |
| Display diagonal | 139.7 cm (55") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Multi-touch | Yes |
| Number of simultaneous touchpoints (Windows) | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1210 x 680 mm |
| Display diagonal (metric) | 218 cm |
| Colour saturation | 72% |
| Horizontal scan range | 30 - 135 kHz |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI, USB |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor model | A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 16 GB |
| Operating system installed | Android 11 |
