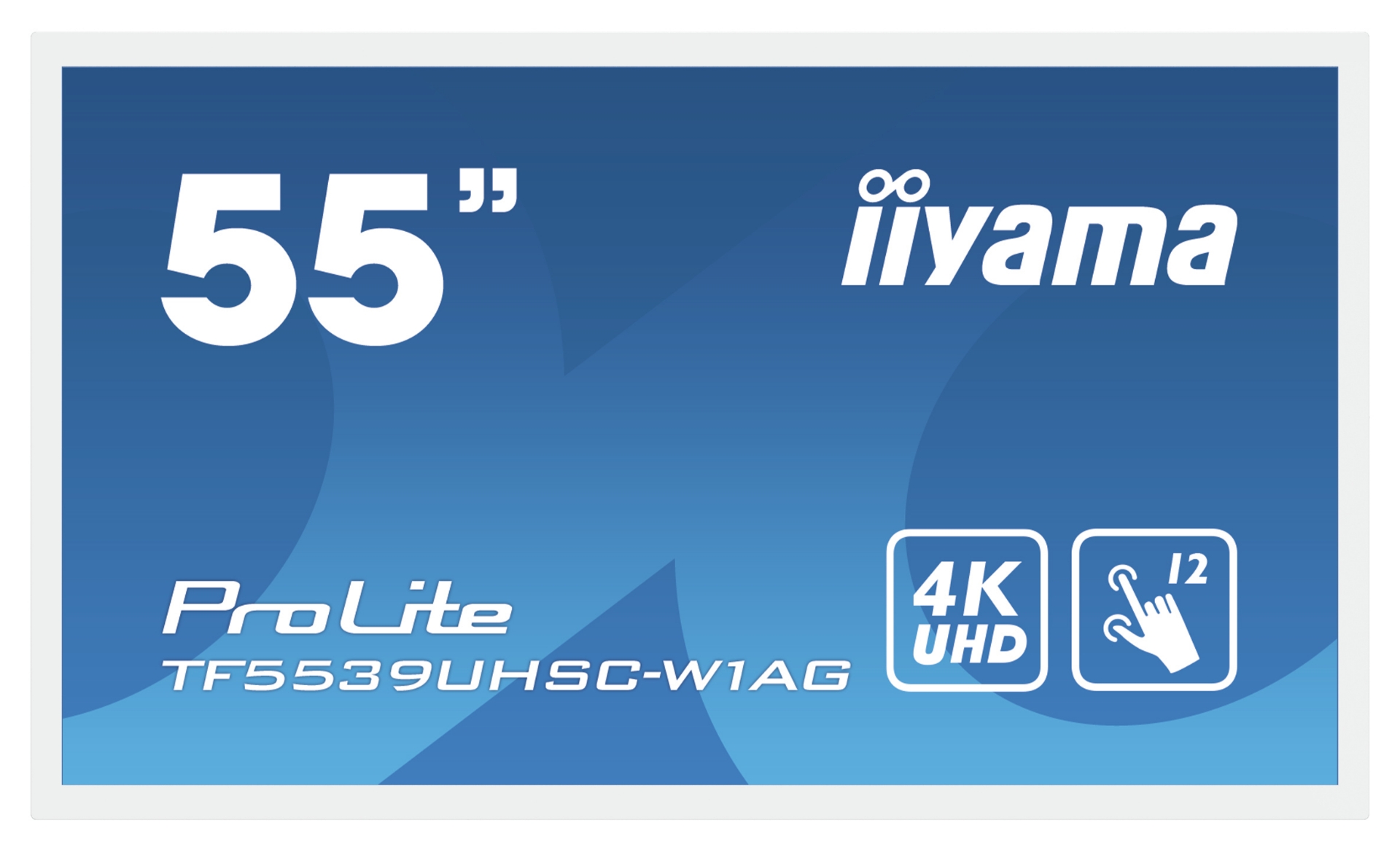

55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use
The 4K UHD (3840x2160) Open Frame TF5539UHSC-W1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-W1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Products specifications
| Width (without stand) | 1271.5 mm |
| Depth (without stand) | 68 mm |
| Height (without stand) | 749.4 mm |
| Weight (without stand) | 41 kg |
| International Protection (IP) code | IP54 |
| Placement supported | Horizontal/Vertical |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Harmonized System (HS) code | 85285210 |
| Package width | 1400 mm |
| Package depth | 245 mm |
| Package height | 930 mm |
| Package weight | 46.5 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Power consumption (typical) | 155 W |
| Power consumption (standby) | 1.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| European Product Registry for Energy Labelling (EPREL) code | 431973 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | 1 |
| Audio output | 1 |
| HDCP | Yes |
| RS-232C | Yes |
| Product colour | White |
| Housing material | Metal |
| Glass thickness | 4 mm |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 15 |
| Display brightness | 500 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1100:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Viewable size, horizontal | 121.2 cm |
| Viewable size, vertical | 68.3 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Display diagonal (metric) | 139 cm |
| Surface hardness | 7H |
| Cables included | DisplayPort, HDMI, LAN (RJ-45), USB |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Wall mountable | Yes |
| Number of speakers | 2 |
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Built-in camera | No |
