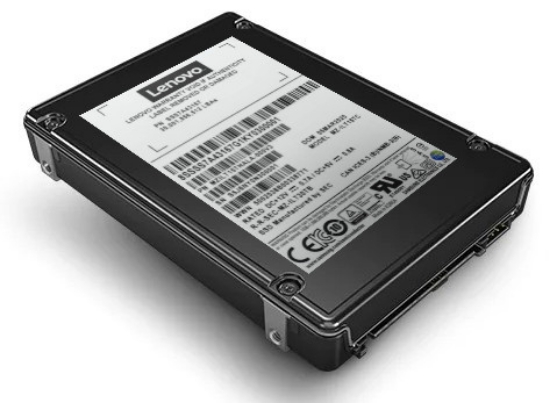

The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs, in capacities of up to 30.72 TB, are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.
This product guide provides essential presales information to understand the PM1653 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the PM1653 SSDs and consider their use in IT solutions.
Products specifications
| SSD capacity | 7.68 TB |
| SSD form factor | 2.5" |
| Interface | SAS |
| NVMe | No |
| Memory type | V-NAND TLC |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 24 Gbit/s |
| Random read (4KB) | 420000 IOPS |
| Random write (4KB) | 110000 IOPS |
| Random latency - read (up to) | 120 µs |
| Random latency - write (up to) | 45 µs |
| S.M.A.R.T. support | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 1 |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 160 g |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 4572 m |
| Power consumption (read) | 11.5 W |
| Power consumption (write) | 14.7 W |
