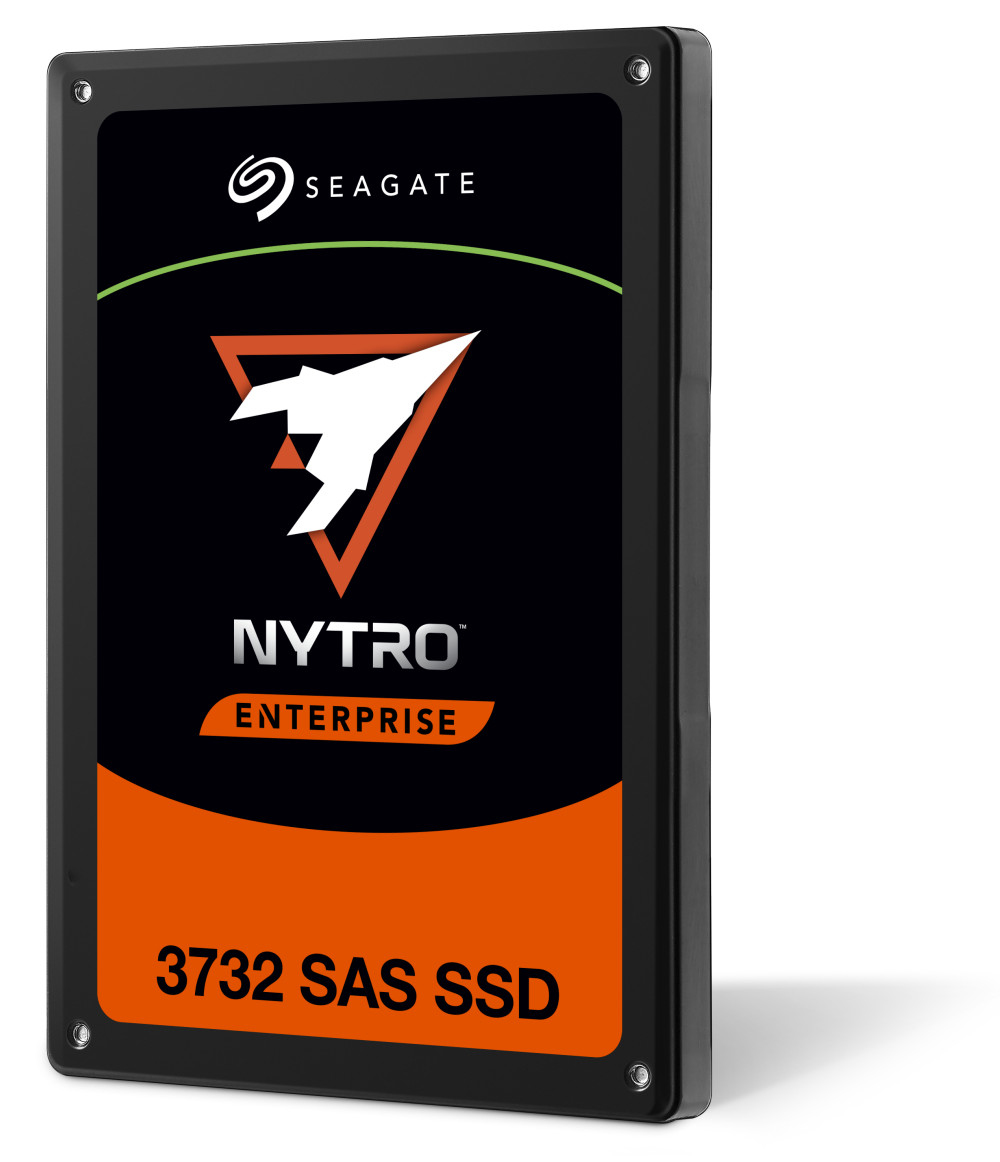

The ThinkSystem Nytro 3732 Performance SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are high-performance SSDs suitable for write-intensive applications of running on ThinkSystem servers.
This product guide provides essential presales information to understand the Performance 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Products specifications
| Security algorithms | 256-bit AES |
| SSD capacity | 1.6 TB |
| SSD form factor | 2.5" |
| Interface | SAS |
| Memory type | 3D eTLC |
| Component for | Server/workstation |
| Random read (4KB) | 180000 IOPS |
| Random write (4KB) | 200000 IOPS |
| Read latency | 115 µs |
| Write latency | 25 µs |
| Mean time between failures (MTBF) | 2500000 h |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 163 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1000 G |
| Maximum operating altitude | 4572 m |
| Power consumption (read) | 9 W |
| Power consumption (write) | 9.3 W |
