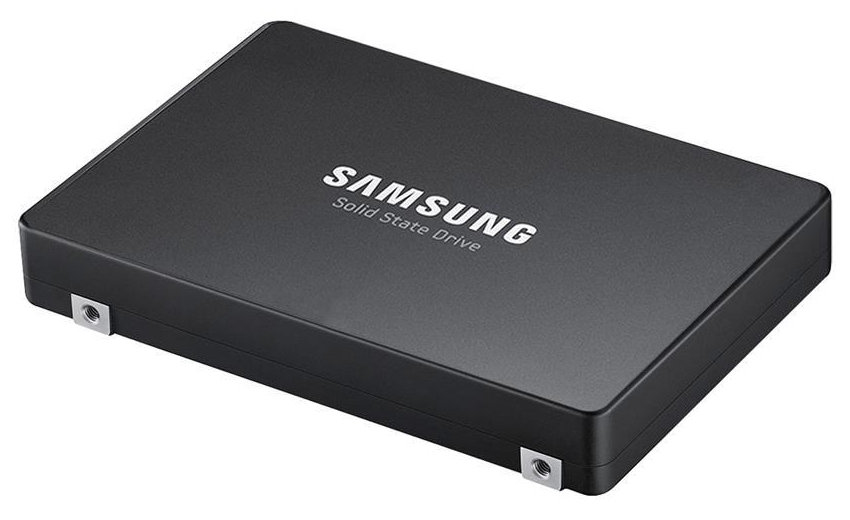

The ThinkSystem PM1733a Read Intensive NVMe SSDs, available in capacities up to 30.72TB, are general-purpose yet high-performance NVMe PCIe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
Products specifications
| SSD capacity | 7.68 TB |
| SSD form factor | U.3 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | V-NAND |
| Component for | Server/workstation |
| Random read (4KB) | 1600000 IOPS |
| Random write (4KB) | 170000 IOPS |
| Read latency | 100 µs |
| Write latency | 25 µs |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 190 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Power consumption (read) | 18 W |
| Power consumption (write) | 19 W |
