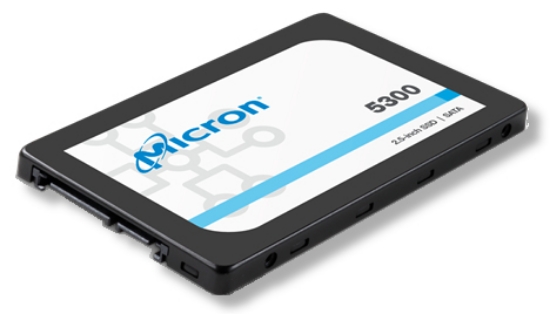

The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
This product guide provides essential presales information to understand the 5300 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Products specifications
| Security algorithms | 256-bit AES |
| SSD capacity | 7.68 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 11000 IOPS |
| Read latency | 175 µs |
| Write latency | 650 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 3000000 h |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016 |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 3.13 G |
| Non-operating shock | 1500 G |
| Power consumption (read) | 2.5 W |
| Power consumption (write) | 3.9 W |
