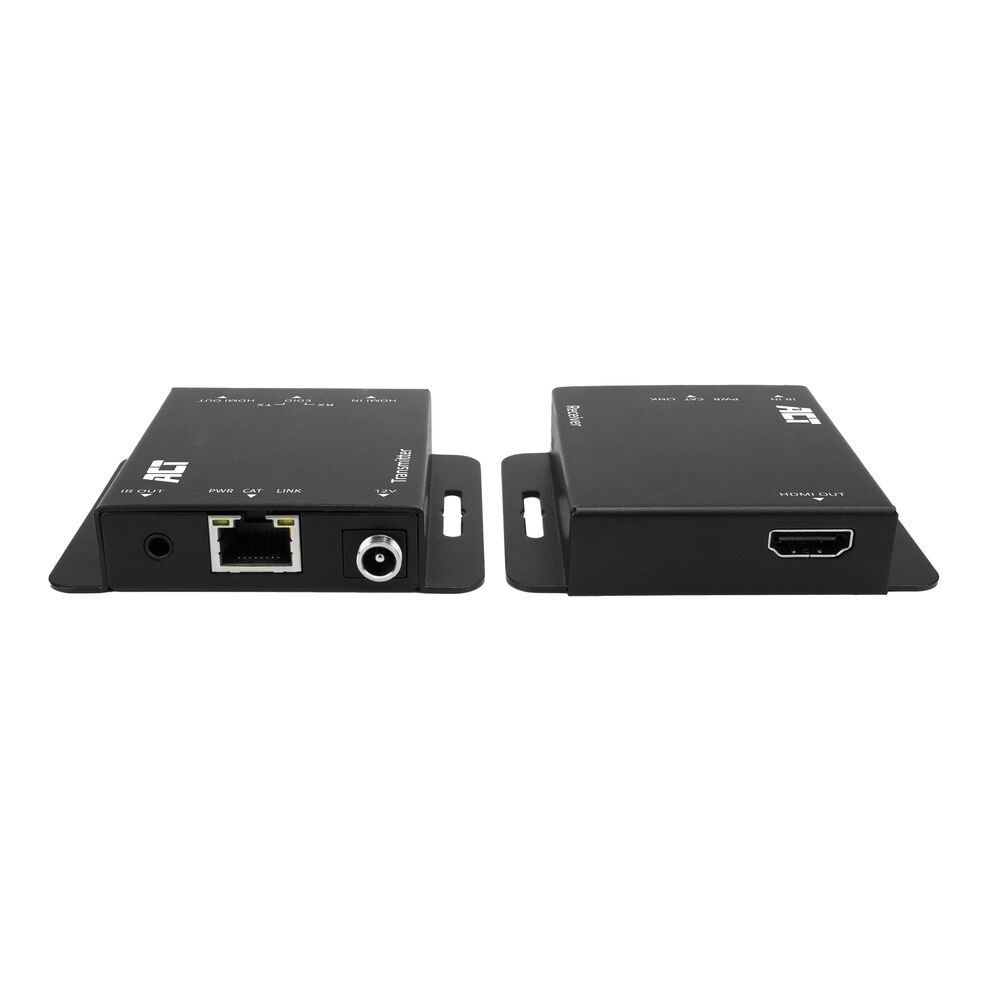

The AC7801 HDMI 1.4 extender set allows you to extend an HDMI signal via CAT6 UTP over a distance up to 40 meters with a maximum resolution of 4K@30Hz. The set supports Power over Cable (PoC) which means that the receiver unit is powered by the transmitter unit. Additionally, the transmitter unit has an HDMI output for connecting a local display. An infrared transmitter and receiver are included to control the source device with its standard remote control. The AC7801 supports EDID copy, Chroma Sampling 4:4:4 and is equipped with a secure locked power connection and an integrated mounting bracket.
4K HDMI signal extension over a distance of 40 meters via CAT6 UTP
The AC7801 HDMI 1.4 extender set extends an HDMI signal over a distance of 40 meters with a 4K@30Hz resolution. 70 meters is possible with a maximum resolution of 1080p@60Hz.
Connect a local loop display
The transmitter unit has an additional HDMI output for connecting a local TV or monitor. The content of the source device can be displayed on a TV or monitor near the transmitter unit.
Power over Cable support via CAT
The HDMI extender set supports Power over Cable (PoC) via CAT6 UTP. Only the transmitter requires power. The receiver unit receives power from the transceiver via the connected UTP cable.
Prevent unintended power cable disconnection
The power connection on the transmitter is protected with a screw lock to prevent unintended cable disconnection.
EDID copy function
The EDID copy function, also known as Extended Display Identification, ensures the resolution communication between the source and output devices. Without EDID, the source and display capacities can differ completely and lead to no image throughput at all. With EDID, the display capacity will be communicated to the source device for the best possible quality.
Infrared control via enclosed IR transmitter and receiver
The AC7801 comes with an Infrared transmitter and receiver for remote controlling the source device.
Cascading via local loop HDMI port
Use the local loop HDMI port for cascading to other HDMI extenders.
Products specifications
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| HDCP version | 1.4 |
| Product colour | Black |
| Quantity per pack | 2 pc(s) |
| Power source type | DC |
| Operating voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 12 W |
| Connectivity technology | Wireless |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 1.4 |
| IR extender included | Yes |
| IR emitter included | Yes |
| IR receiver included | Yes |
