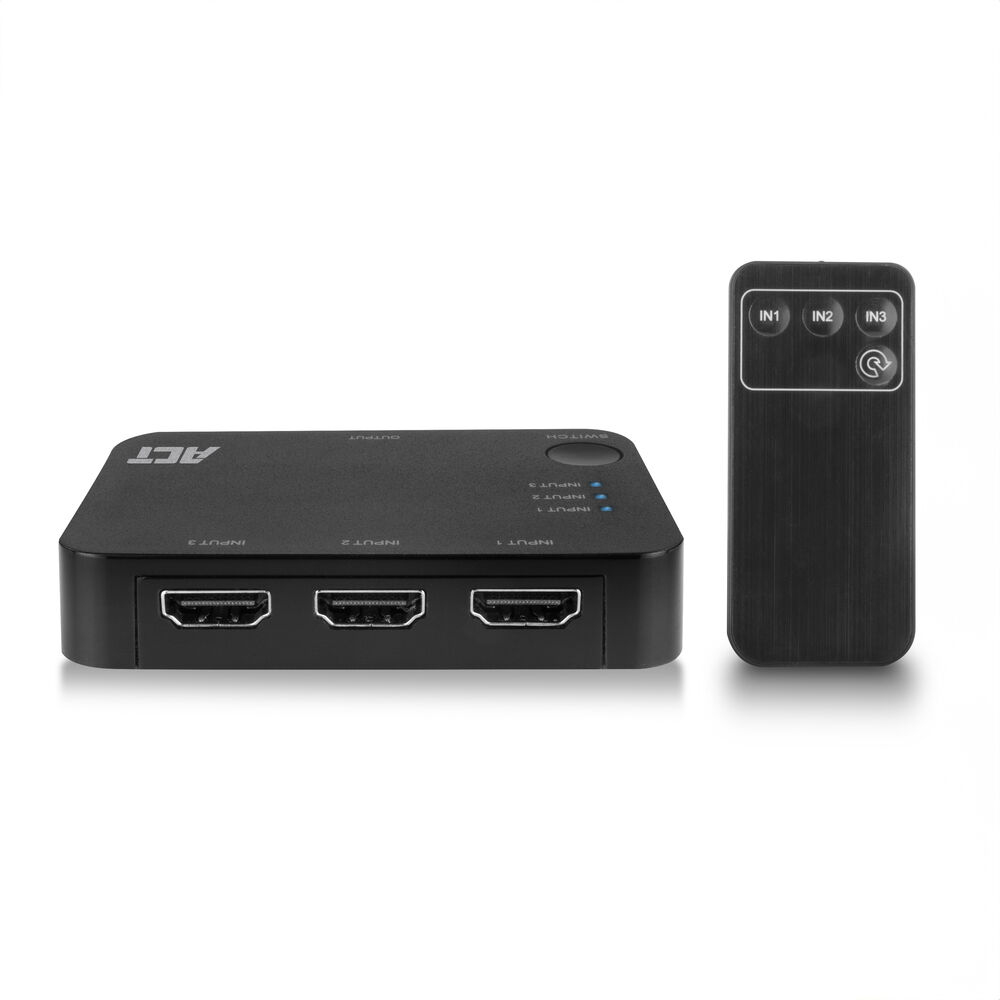

The AC7845 4K HDMI Switch 3x1 enables you to display 3 HDMI sources on one TV/screen. Switching between the sources is easy with the supplied remote control. The AC7845 switches automatically to the first available source thanks to the auto-input-sensing. The maximum supported resolution is 4096x2160 @ 60Hz.
Display three HDMI sources on one TV
Use the AC7845 4K 3x1 HDMI Switch for switching between multiple video sources on a single TV. E.g. a laptop, game console or TV streamer. The AC7845 supports Auto-Input-Sensing which enables the switch to detect the first available source. With the included remote control you can easily select the HDMI source that should be displayed. The status LEDs show the occupied input ports.
Connect your devices
Connect the video sources with Premium High Speed HDMI cables to the HDMI input ports of the AC7845 HDMI Switch. Connect a TV/monitor with a High Speed HDMI cable to the output port of the switch. The maximum recommended length for HDMI cables is 5 meters. The AC7845 is USB powered via the enclosed cable.
Products specifications
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 1080p, 2160p |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 2.2 |
| Width | 87 mm |
| Depth | 59.5 mm |
| Height | 19 mm |
| Harmonized System (HS) code | 85176990 |
| Package width | 125 mm |
| Package depth | 25 mm |
| Package height | 160 mm |
| Package weight | 144 g |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| Quantity per pack | 1 pc(s) |
| Remote control included | Yes |
| Cables included | IR, USB |
