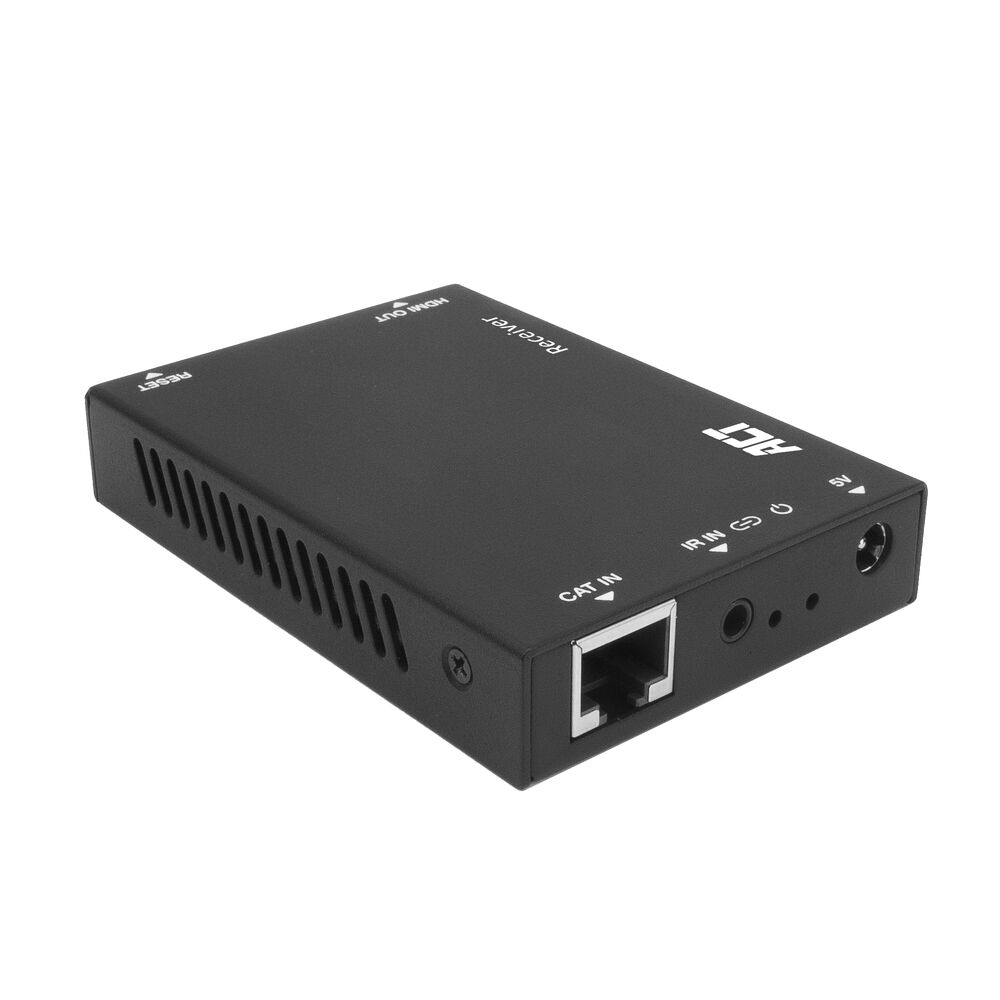

The AC7853 HDMI receiver can be used as an additional receiver unit in a point-to-multipoint setup with the AC7852 HDMI over IP Extender Set. Connect up to 253 receivers to the AC7852 via a network switch. In a point-to-multipoint setup, the switch needs to support Layer 3, Internet Group Management Protocol (IGMP) and Multicast. The AC7853 comes with mounting brackets and a IR receiver.
Products specifications
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Video compression formats | H.265 |
| HDCP | Yes |
| HDCP version | 1.4 |
| Product colour | Black |
| Width | 88 mm |
| Depth | 61.2 mm |
| Height | 16.5 mm |
| Weight | 155 g |
| Quantity per pack | 1 pc(s) |
| Power source type | DC |
| Operating voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 5 W |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| AC adapter included | Yes |
| Cables included | IR |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
