Security Never Shuts Down

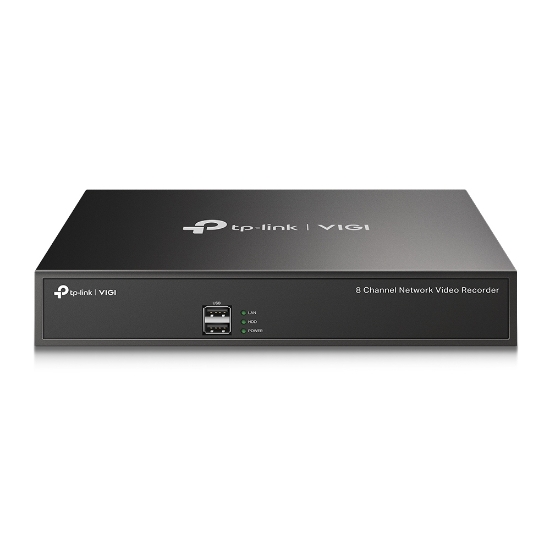

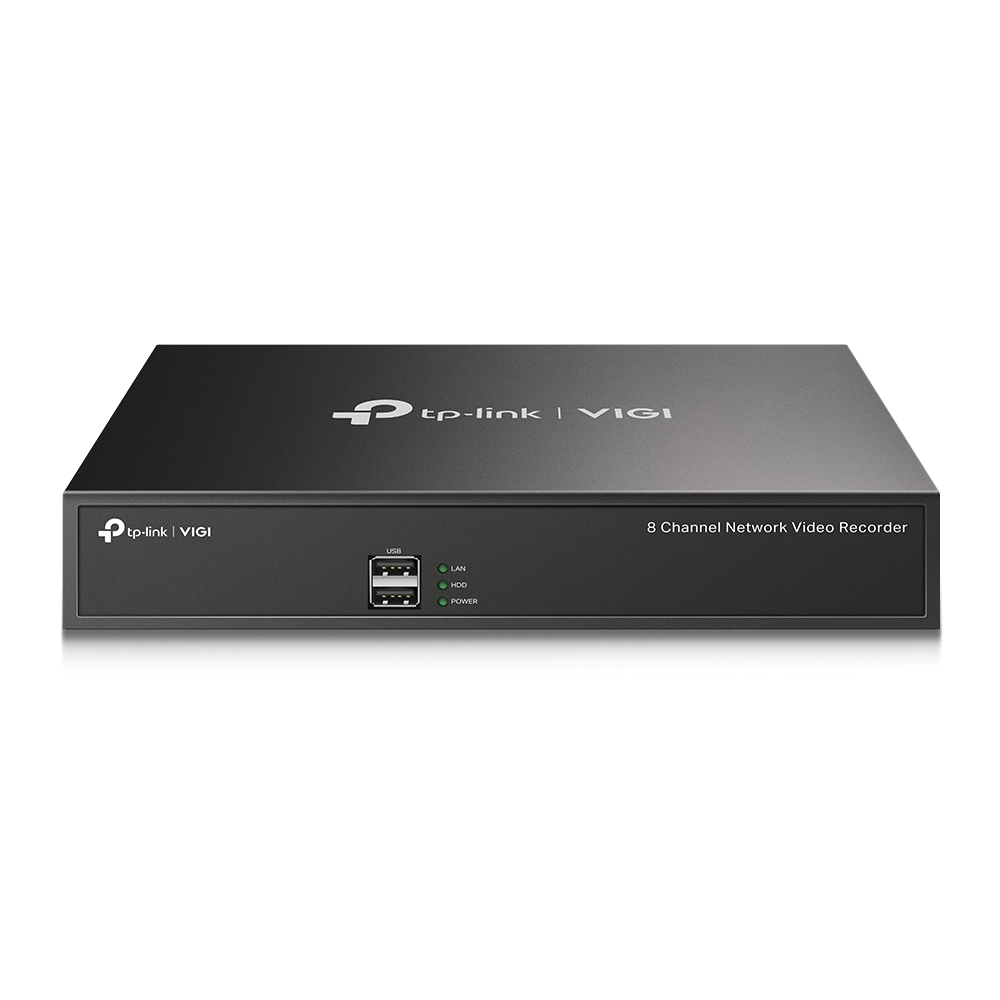

VIGI NVR1008H 8 Channel Network Video Recorder
VIGI NVR Introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.
Security for every hour and every day.
24/7 Continuous Recording
Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
Every angle all on one screen.
8-Channel Real-Time Live View
Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.
Reviewing footage is faster than ever.
4-Channel Simultaneous Playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Keep an eye on things even when you are on the move.
Remote Monitoring
Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
No need to check long compatibility lists.
Onvif Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Up to 720 days of footage stored locally.
1 HDD (up to 10 TB)
Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.
Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
More bandwidth for more cameras.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR connects more cameras with high resolution.
Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
Manage everything with one.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Products specifications
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Width | 246.2 mm |
| Depth | 148.2 mm |
| Height | 42.6 mm |
| Weight | 578.5 g |
| Package width | 277.5 mm |
| Package depth | 296.5 mm |
| Package height | 64.5 mm |
| Package weight | 1.07 kg |
| Harmonized System (HS) code | 85219000 |
| Operating temperature (T-T) | -10 - 55 °C |
| Output voltage | 12 V |
| Power supply | 18 W |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
| Video input channels | 8 channels |
| Number of simultaneously playbacked channels | 4 channels |
| Video recording modes | 1080p |
| Maximum resolution | 1920 x 1080 pixels |
| Supported resolutions | 1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024 |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Wi-Fi | No |
| HDD capacity | 0 GB |
| Number of HDDs supported | 1 |
| Maximum storage capacity | 0 TB |
| HDD interface | Serial ATA |
