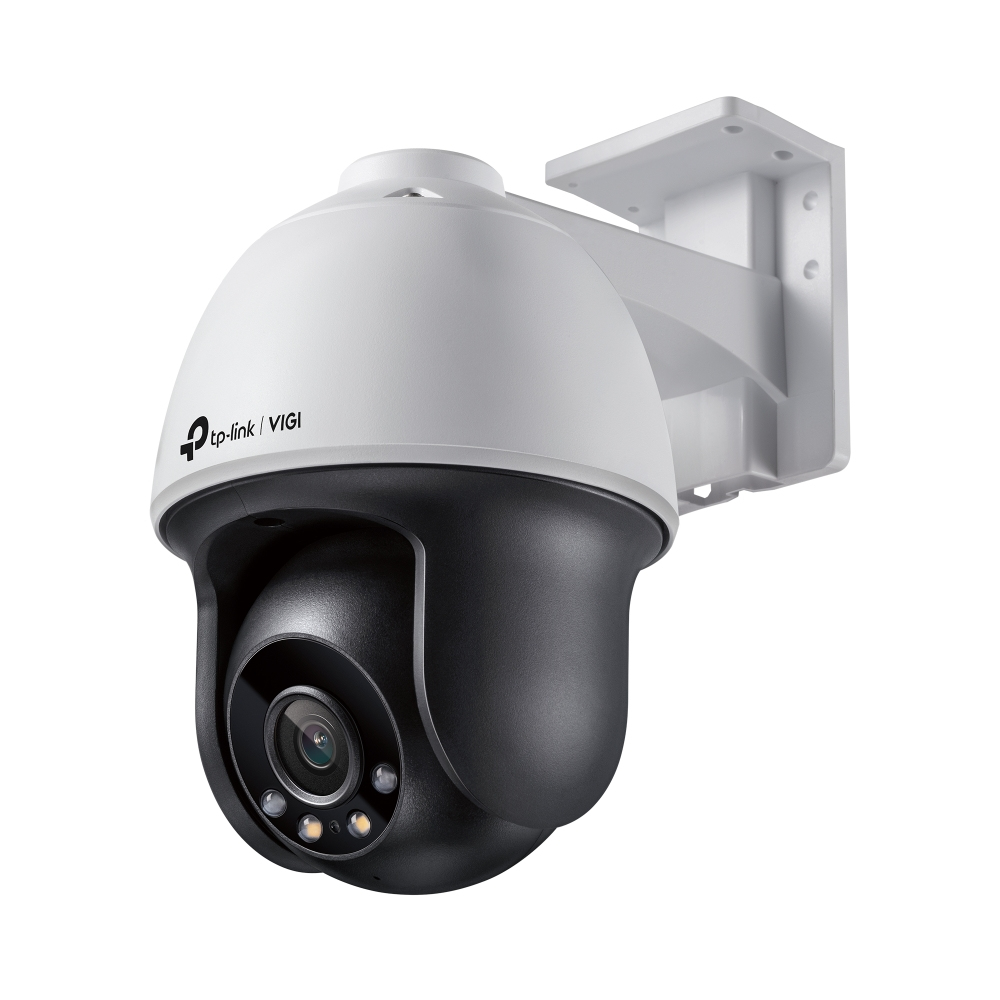

TP-Link VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera

TP-Link VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 4 mm
Manufacturer: TP-Link
SKU: VIGI C540(4MM)
Vendor: Aspects
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

Outdoor PoE Connection, Simple Wiring
Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€93.55 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

Outdoor PoE Connection, Simple Wiring
Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
Products specifications
Weight & dimensions
Width120 mm
Depth172 mm
Height198 mm
Packaging data
Package width163 mm
Package depth213 mm
Package height243 mm
Package weight950 g
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Power
Power source typePoE
Power consumption (Power over Ethernet (PoE))14 W
DC output voltage12
Management features
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Network
Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-FiNo
BluetoothNo
Live viewYes
Number of simultaneous live view channels3 channels
Design
Form factorTurret
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialPlastic
International Protection (IP) codeIP66
Performance
TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
CertificationRCM, BSMI, VCCI, NTRA, KC
Packaging content
Number of cameras1
Mounting kitYes
Sustainability
Compliance certificatesCE, RoHS
Security
Password protectionYes
IP address filteringYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresHuman detection
MirrorYes
Digest authenticationYes
Audio
Built-in speaker(s)Yes
Built-in microphoneYes
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Camera
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal79°
Lens viewing angle, vertical43°
Lens viewing angle, diagonal93°
Tilt angle range0 - 120°
Pan range0 - 350°
Lens system
Zoom capabilityYes
Number of lenses1
Lens diameter4 mm
Video
Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
Privacy maskingYes
Bit rate256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)Yes
Image sensor
Optical sensor size25.4 / 3 mm (1 / 3")
Sensor typeCMOS
Night vision
Night visionYes
Night vision distance30 m
LED typeIR
*
*
*
