Built-in processor
|
Yes |
Processor cores
|
1 |
Width
|
74 mm |
Depth
|
67 mm |
Height
|
22 mm |
Weight
|
56.7 g |
Harmonized System (HS) code
|
85176990 |
Package width
|
110 mm |
Package depth
|
109 mm |
Package height
|
81.5 mm |
Package weight
|
300 g |
Operating temperature (T-T)
|
0 - 40 °C |
Storage temperature (T-T)
|
-40 - 70 °C |
Operating relative humidity (H-H)
|
10 - 90% |
Storage relative humidity (H-H)
|
5 - 90% |
Power source type
|
USB |
Output voltage
|
5 V |
Output current
|
2 A |
Compliance certificates
|
RoHS, Federal Communications Commission (FCC), CE |
Quality of Service (QoS) support
|
Yes |
Reset button
|
Yes |
WPS push button
|
Yes |
Ethernet LAN (RJ-45) ports
|
1 |
USB port
|
Yes |
USB 2.0 ports quantity
|
1 |
Ethernet LAN
|
Yes |
Ethernet LAN interface type
|
Fast Ethernet |
Ethernet LAN data rates
|
10,100 Mbit/s |
Cabling technology
|
10/100Base-T(X) |
Networking standards
|
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
Port forwarding
|
Yes |
Port triggering
|
Yes |
Dynamic DNS (DDNS)
|
Yes |
Number of guest networks (2.4 GHz)
|
1 |
Number of guest networks (5 GHz)
|
1 |
Built-in FTP server
|
Yes |
Media server
|
Yes |
VPN Passthrough
|
Yes |
VPN support
|
PPTP, L2TP, IPSec |
Receiver sensitivity
|
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm;
11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9:
-61.5dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -74dBm;
11n HT40 MCS7: -71dBm |
Product colour
|
White |
Product type
|

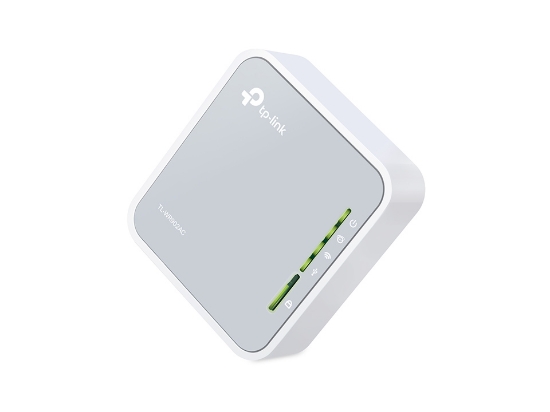

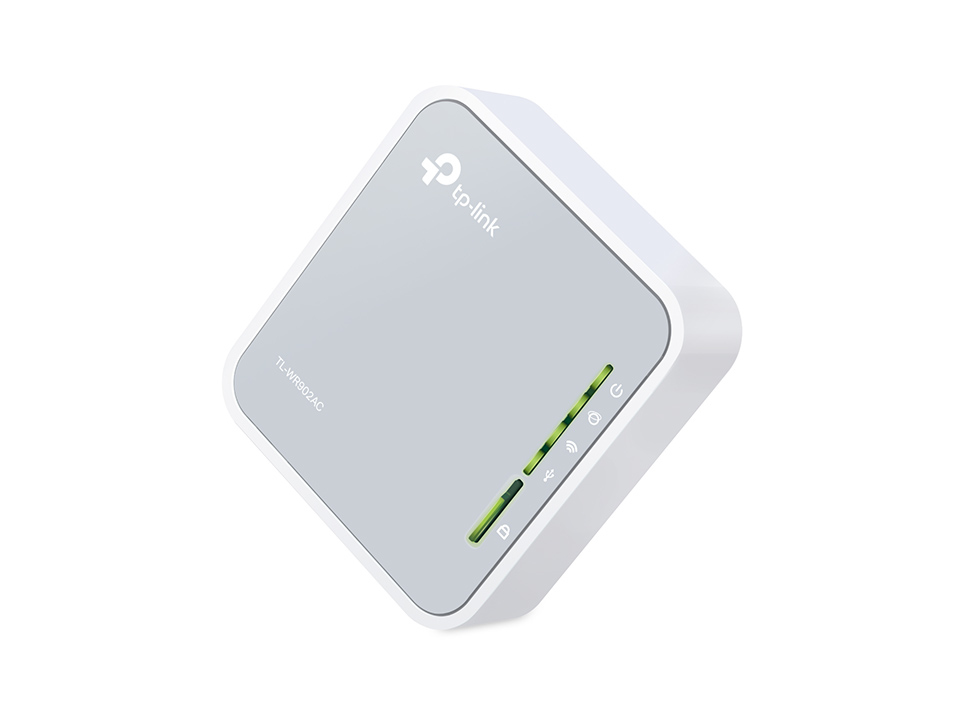

Portable router |
Cables included
|
LAN (RJ-45) |
AC adapter included
|
Yes |
Quick start guide
|
Yes |
Windows operating systems supported
|
Yes |
Linux operating systems supported
|
Yes |
Mac operating systems supported
|
Yes |
Mac compatibility
|
Yes |
Sustainability compliance
|
Yes |
Security algorithms
|
WEP, WPA, WPA2 |
Firewall
|
Yes |
Firewall security
|
SPI |
Guest access
|
Yes |
Stateful Packet Inspection (SPI)
|
Yes |
DoS attack prevention
|
Yes |
Filtering
|
Yes |
IP address filtering
|
Yes |
URL filtering
|
Yes |
DMZ support
|
Yes |
DHCP client
|
Yes |
DHCP server
|
Yes |
Universal Plug and Play (UPnP)
|
Yes |
Supported network protocols
|
IPv4, IPv6 |
Ethernet WAN
|
Yes |
DSL WAN
|
No |
SIM card slot
|
No |
3G/4G USB modem compatibility
|
Yes |
WAN connection type
|
RJ-45 |
Wi-Fi band
|
Dual-band (2.4 GHz / 5 GHz) |
Top Wi-Fi standard
|
Wi-Fi 5 (802.11ac) |
WLAN data transfer rate (max)
|
433 Mbit/s |
Wi-Fi standards
|
802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
WLAN data transfer rate (first band)
|
300 Mbit/s |
WLAN data transfer rate (second band)
|
433 Mbit/s |
Antenna design
|
Internal |
Antennas quantity
|
2 |
Receive power
|
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm, 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm |
Transmit power
|
CE:<20dBm(2.4GHz), <23dBm(5GHz) |
Mobile network generation
|
4G |
