Sorry - this product is no longer available

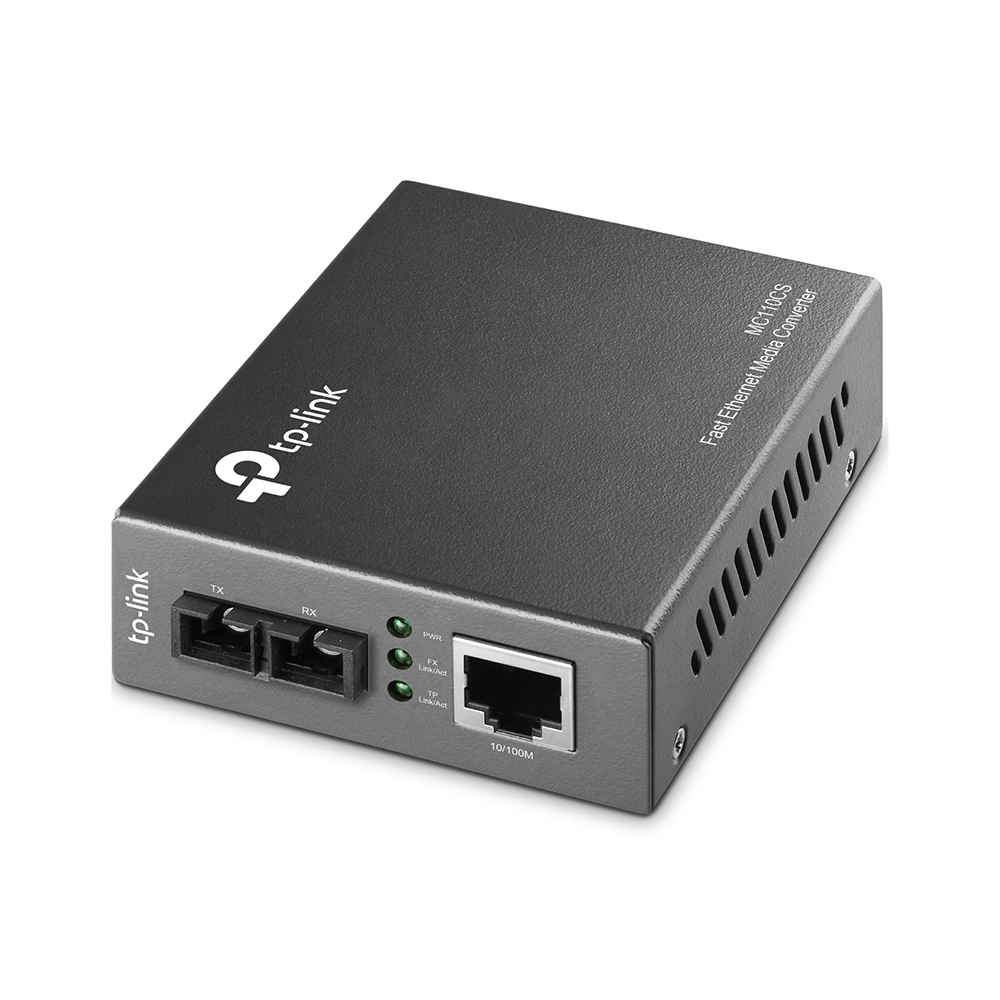

TP-Link 10/100Mbps Single-Mode Media Converter

Be the first to review this product
TP-Link 10/100Mbps Single-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Wavelength: 1310 nm. LED indicators: Power, Speed, Product colour: Black, Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 1.52 W
Manufacturer: TP-Link
SKU: MC110CS
Vendor: Aspects
What This Product Does
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€27.68 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
What This Product Does
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Products specifications
Features
InternalNo
LED indicatorsPower, Speed
Product colourBlack
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Weight & dimensions
Width94.5 mm
Depth73 mm
Height27 mm
Other features
Dimensions (WxDxH)94.5 x 73 x 27 mm
I/O ports1x 100M SC 1x 100M RJ45
Full duplexYes
Packaging data
Package width165 mm
Package depth204 mm
Package height65 mm
Package weight380 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Power
Power consumption (max)1.52 W
Certificates
CertificationFCC, CE
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
Network
Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000 Mbit/s
Fiber ethernet cabling technology100BASE-FX
Auto MDI/MDI-XYes
Cabling technologyUTP 3, 4, 5e, 5
Cable types supportedCat3, Cat4, Cat5, Cat5e
Performance
Maximum transfer distance20000 m
Wavelength1310 nm
*
*
*
Products specifications
Features
InternalNo
LED indicatorsPower, Speed
Product colourBlack
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Weight & dimensions
Width94.5 mm
Depth73 mm
Height27 mm
Other features
Dimensions (WxDxH)94.5 x 73 x 27 mm
I/O ports1x 100M SC 1x 100M RJ45
Full duplexYes
Packaging data
Package width165 mm
Package depth204 mm
Package height65 mm
Package weight380 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Power
Power consumption (max)1.52 W
Certificates
CertificationFCC, CE
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
Network
Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000 Mbit/s
Fiber ethernet cabling technology100BASE-FX
Auto MDI/MDI-XYes
Cabling technologyUTP 3, 4, 5e, 5
Cable types supportedCat3, Cat4, Cat5, Cat5e
Performance
Maximum transfer distance20000 m
Wavelength1310 nm
