What This Product Does

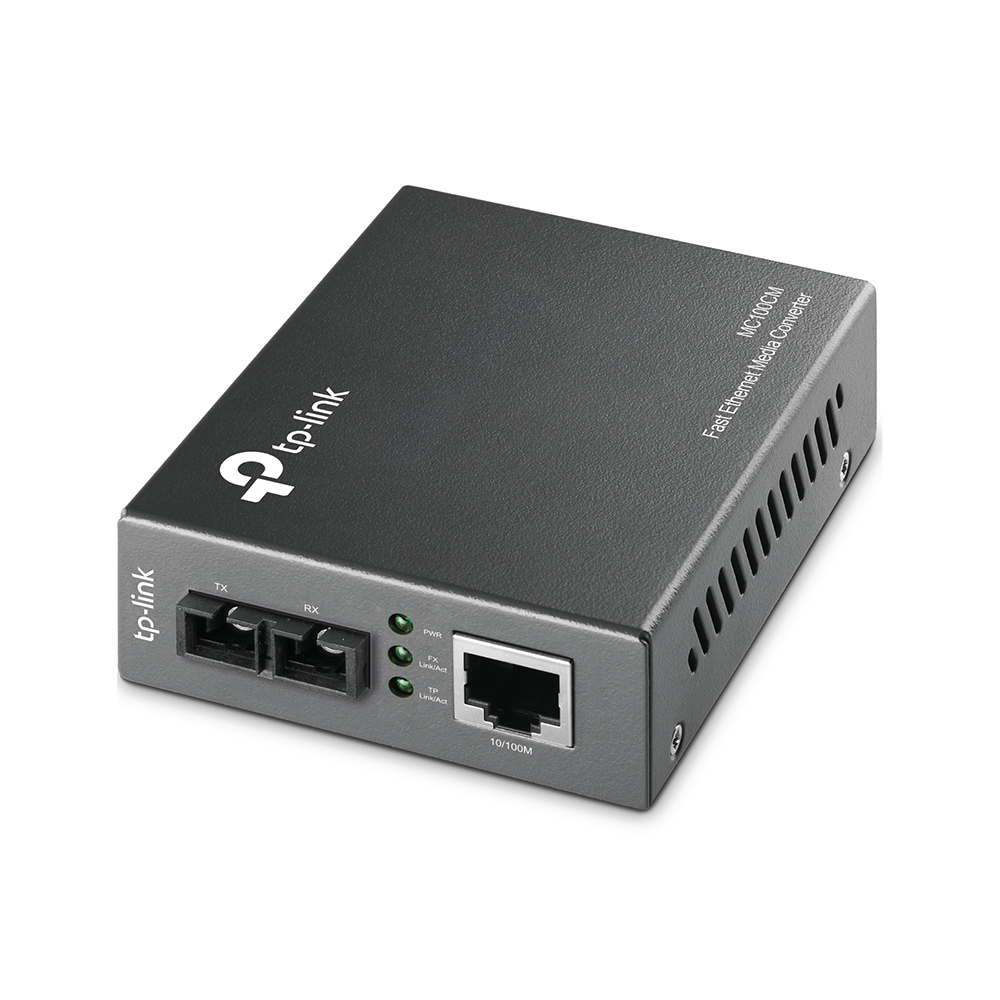

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
Products specifications
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 380 g |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Power consumption (max) | 2.5 W |
| Certification | FCC, CE |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Fiber ethernet cabling technology | 100BASE-FX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
